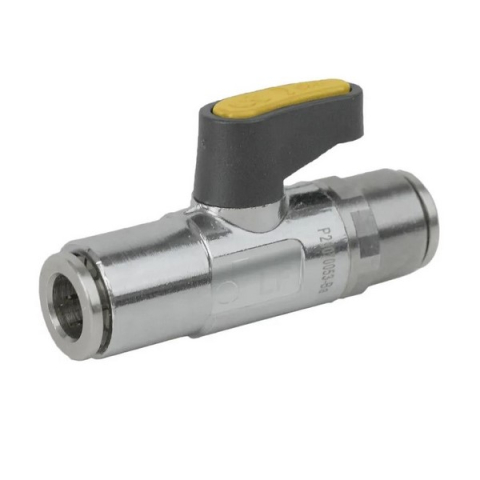

Jomar 186-530 1/8" Mini Brass Ball Valve 2 Piece Full Port Push-Fit Connection 200 WOG

1/8" Mini Brass Ball Valve, 2 Piece, Full Port, Brass, Push-Fit Connection, 200 WOG

Features:

• FKM O-Rings
• Corrosion Resistant
• Applicable in Limited Spaces
• Chrome Plated
• 100% Made in Italy
• Push-Fit Connection
• Pressure/temperature rating - 145 PSI / 14°F - 195°F
• Valve Seat Rating - 200 WOG
• Port Size - 1/8"

Part Material:

• Body - Chrome Plated Brass CW617N
• Ball - Nickel Plated Brass CW617N
• Stem -  Brass CW617N
• Sleeve - Chrome Plated Brass CW617N
• O-Ring x 3 - FKM 70Sh
• Ball - Seal PTFE
• Handle - Nylon PA6 +30%GF
• Screw - Steel
• Clip - Nylon PA6 +30%GF
• Collet - Nickel Plated Brass CW617N

Certifications/Approvals:

• ANSI B1.20.5

For more information, please see Specification Sheet
