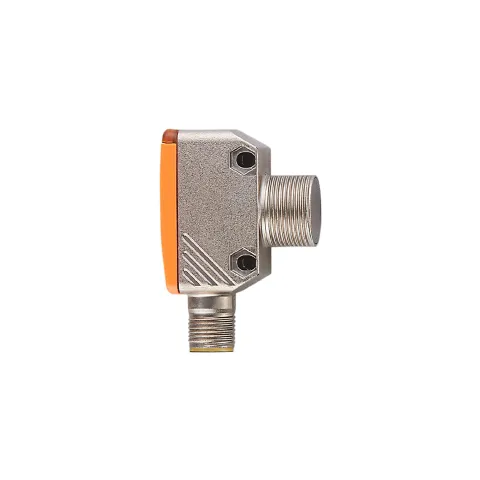

IFM OGH580 Diffuse Reflection Sensors with Background Suppression, PNP, 52.6 x 19 x 35.6 mm, Programmable Light-on/Dark-on Mode

Features:

• Robust rectangular metal housing with M18 thread on the side
• Particularly space-saving design for use where space is restricted
• Precise background suppression
• Programmable light-on/dark-on mode
• Intuitive sensitivity adjustment with pushbutton

For more information, please see Data Sheet

Diagrams and graphs

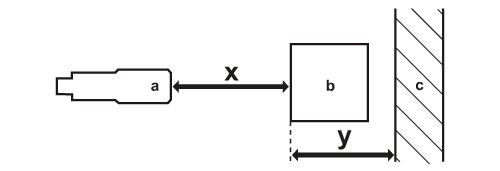

	a: sensor b: object c: background x: distance sensor/object [mm] y: min. distance object/background [mm]

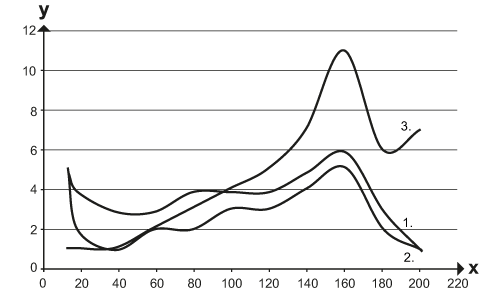

	x: distance sensor/object [mm] y: min. distance object/background [mm] 1 = object black (6 % remission) , Background white (90 % remission) 2 = object grey (18 % remission) , Background white (90 % remission) 3 = object white (90 % remission) , Background white (90 % remission)
