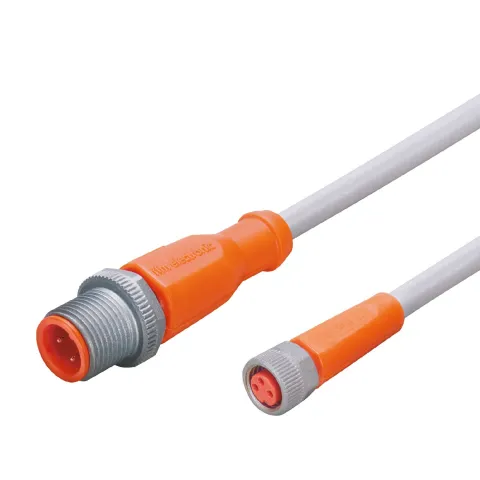

IFM EVW078 Connection Cable, 1 m, PUR, Halogen-Free, Gray, Dia 4.5 mm, Resistant to Welding Sparks, 3 x 0.25 sq. mm

Features:

• Weld-slag resistant PUR cable with drag chain suitability
• Nut with special weld-slag resistant coating
• High protection rating for the requirements of harsh industrial environments
• Vibration and shock resistant thanks to coupling ring with locking mechanism
• Mechanical end stop to protect the O-ring from destruction

For more information, please see Data Sheet

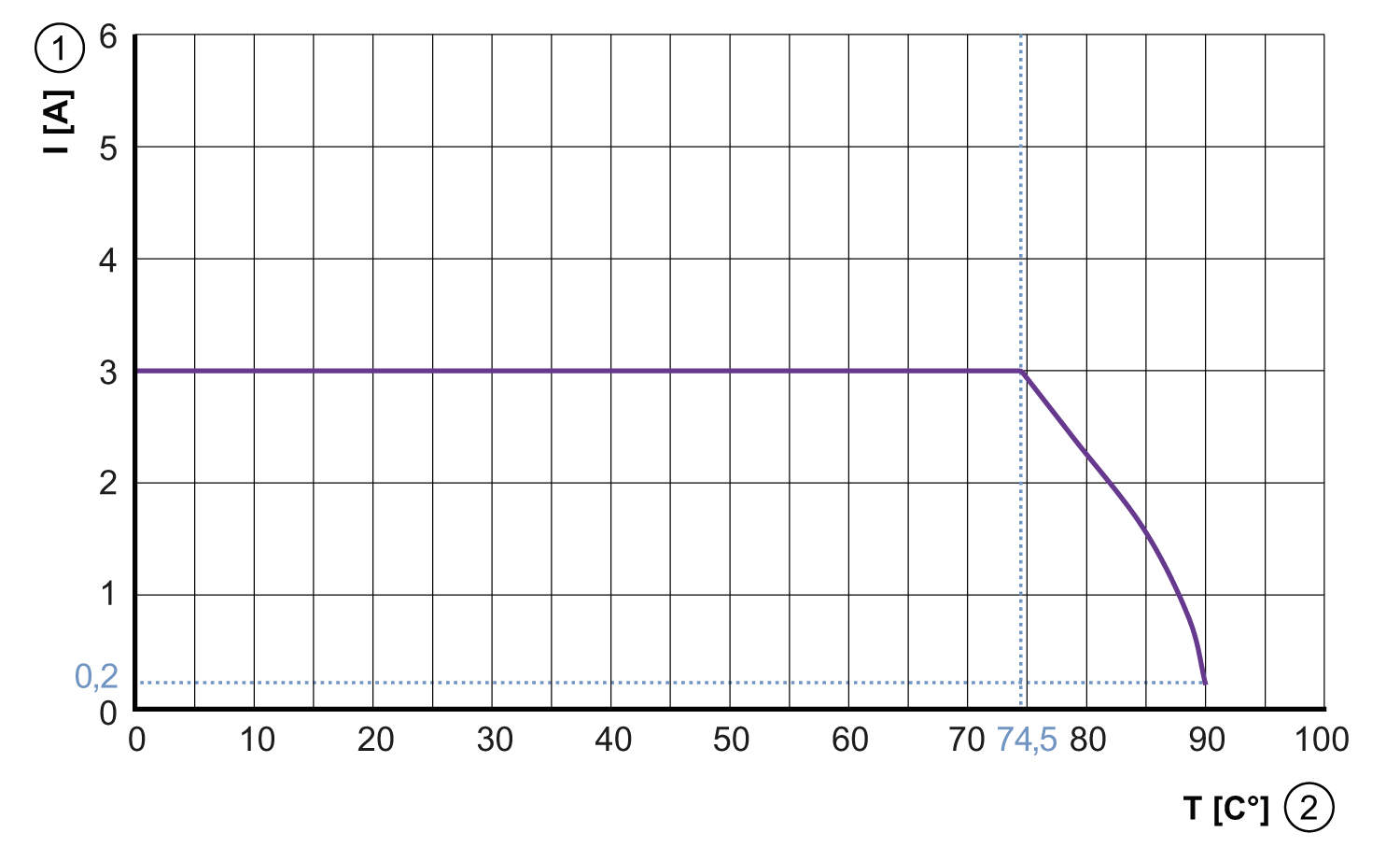

Diagrams and graphs

1 Current [A] 2 Ambient temperature [°C]
