GfG Instrumentation 3615-079 D-ReX Enclosure Series Transmitter with Enclosure Point of Installation, Silane MK477-10, 0-50 ppm Range

A versatile solution for monitoring gases - ideal for the semiconductor industry

The D-ReX was designed specifically for the requirements of the semiconductor industry, but will also significantly increase the safety of any other application where toxic, corrosive or combustible gases need to be monitored.

One system for every requirement

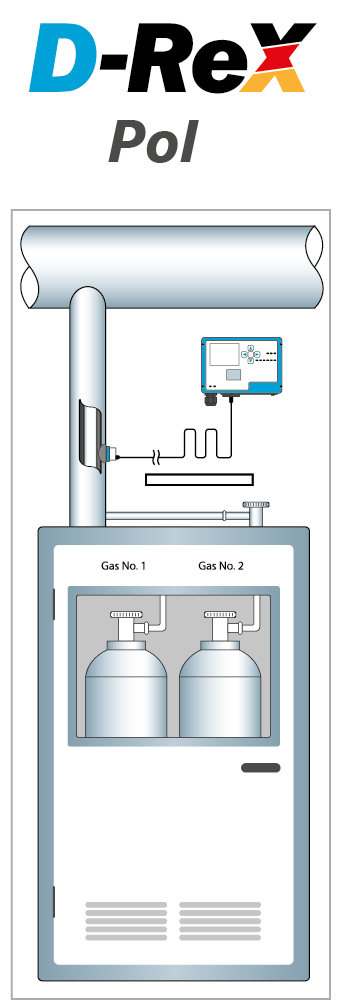

Gases in places that are hard or impossible to reach, such as pipe systems, can be monitored with an external sensor up to 4000 feet away from the Point of Installation (PoI).

Enclosure Series

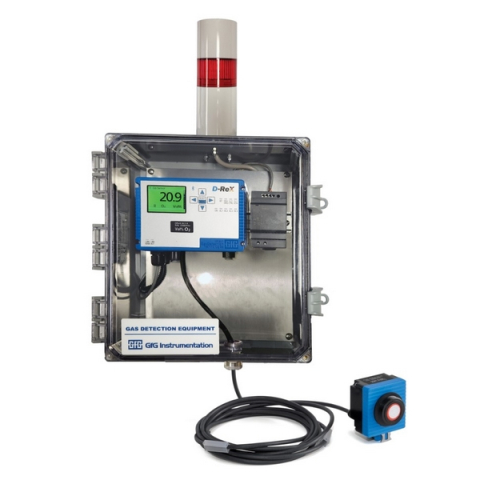

D-ReX Enclosure Series comes with enclosure and accessories for installing.

Package includes:

• NEMA 4X Enclosure
• Power supply
• Stack light/horn
• Transmitter
• External sensor cartridge
• Cable
• Sensor

State of the art gas monitoring

The D-ReX can easily be integrated into your current system thanks to its Power over Ethernet (PoE) communication and power supply. The full color display will clearly and concisely indicate all information on the measured gas concentrations, threshold values, faults and alarms.

Smart sensors and simple service

All sensors are preconfigured and come enclosed in easily replaceable sensor cartridges. The corresponding app connected using Bluetooth facilitates servicing and thus minimizes downtimes as well as costs. Measuring gas is Silane.

Different options for increasing safety

D-ReX is equipped with three internal relays (with one freely programmable changeover contact each) which are used for the implementation of security procedures. If your application requires more relays, they can be connected by one of optional GfG relay modules. The GMA200-RT offers 16 relays with changeover contacts, is available with or without display and can be mounted either on DIN rails or walls.

Clear information

The large TFT color display will supply you with all necessary information on the measured gas, the measured concentration, the condition of the gas detector and any errors in clear plain text, so you can react immediately. The display can be set to English and up to five other languages. You can control the device with the Bluetooth connected app or using the 5 button interface next to the display.

Communication just the way you need it

To meet the standards of the latest device connectivity options, the D-ReX is equipped with a PoE enabled LAN interface with 10/100 Mbits/s for safe and fast transmission of data. This allows you to address the D-ReX both from your network and from the internet. Alternatively, D-ReX also has analog integration into 4-20mA infrastructures or digital communication through the reliable RS-485 industry standard connection (Modbus).

Features:

• Hot-swappable smart sensor cartridge
• Tool-free maintenance
• Power-over-Ethernet (PoE) communication
• Can be addresses via web portal
• Password-protected menu
• Interface:
  • Analog: 4-20 mA output
  • Digital: RS-485 (Modbus/RTU)
  • 10/100 Mbit Ethernet (Modbus/TCP)
• Bright status and alarm LEDs
• Data logger to review sensor history and alarms
• CE marked and UL certified
• Measuring gas, range and sensor: Silane, 0 - 50 ppm, MK477-10

For more information, please see Data Sheet and Manual
