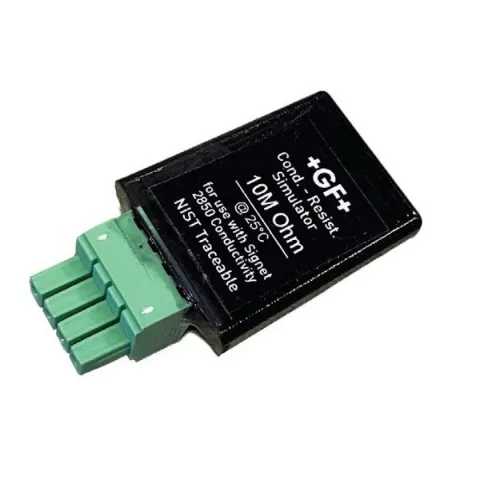

GF Piping Systems 3-2850.101-1 Plug-In NIST-Traceable Recertification Tool 1.0 mkS

The type 2850 Conductivity/Resistivity tool is available for certification or validation of electronics that are independent of the electrode. Because there are no available liquid standards for calibration in low conductivity and resistivity applications, the tool is ideal for various installations.

The tool is built to conform to the ASTM D 1125-95 Standard (Standard Test Methods for Electrical Conductivity and Resistivity of Water), which is also commonly used for USP 24 applications. The Conductivity/Resistivity tool simulates within ±0.1% precision (accuracy), in value 1.0 µS ±0.1%.  The tool enables the user to accurately validate or certify the electronics. The type 2850.101-1 simulators are used with the type  9900 and type 2850 electronics by simply plugging into the same terminals as the sensor cables.

Features:

• Compatible with 3-2850 electronics when used with the 9900 or 9950 Transmitter or as a stand-alone 4 to 20 mA output
• Verifies electronics independent of electrode
• NIST traceable units
• Temperature compensated to 25 °C
• All units delivered with NIST traceable certificates

For more information, please see Data Sheet
