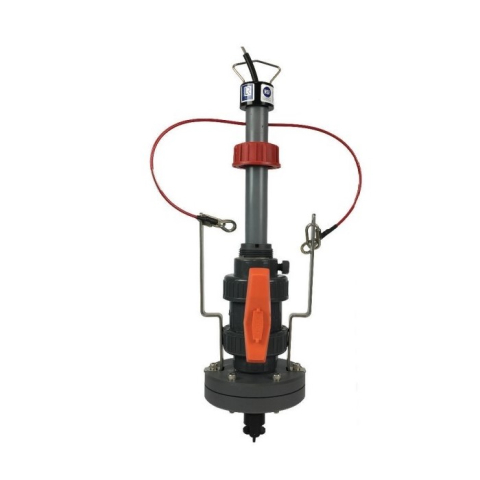

GF Piping Systems 3-3519/515-P5 Wet-Tap Flow System 10-Up

The Signet 3519 Flow Wet-Tap Valve serves as a unique interface between the installation fi tting and the wet-tap style Signet 515 or 2536 Rotor-X flow sensor. It provides a fast method of removing the sensor from the pipe under specifi ed operating pressures. The PVC and stainless steel design of the Wet-Tap makes it resistant to corrosion and chemical attack by acids, alkalies, salt, and a number of other harsh chemicals.

The Signet 3519 Wet-Tap Valve mounts directly onto standard Signet installation fittings. The 3519 Wet-Tap consists of a flange and support plate that threads onto the pipe fitting insert, and a PVC ball valve through which an extended length sensor is inserted into the pipe.

Polypro extended length paddlewheel sensor for 10 to 36 inch pipes (250 mm and up)

Features:

• Allows sensor removal without process shutdown
• Pressure release valve for safe sensor removal
• Dual safety lanyards
• Rugged corrosion-resistant PVC construction and stainless steel hardware
• Compatible with Signet 515 or 2536 Rotor-X Wet-Tap Flow Sensors
• Eliminates process downtime

Applications:

• Filtration Systems
• Chemical Production
• Pump Protection
• Scrubbers
• Water Distribution
• Effluent Totalization
• Process Cooling Loops
