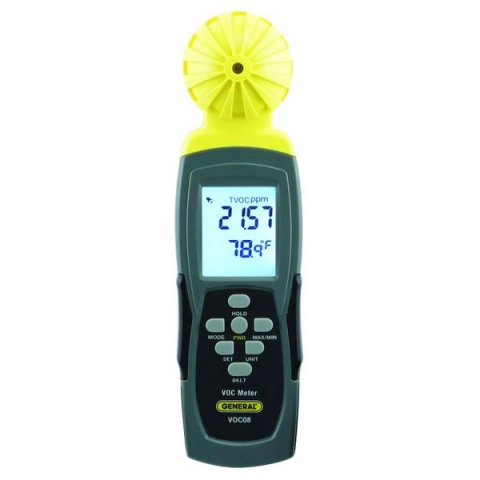

General Tools VOC08 Volatile Organic Compounds (VOC) Data Logger
- Specification
- Overview
- Customers Also Bought
- Your Recently Viewed Items
- Reviews
Click to zoom
Overview
The #VOC08 is ideal for making ballpark measurements of mixed-gas VOC levels as part of an indoor air quality (IAQ) maintenance and documentation program. The instrument is much less expensive than photo-ionization meters designed to make precise measurements of VOC levels from a single gas.
- A metal-oxide semiconductor sensor within the vented ball housing detects ammonia, toluene, ethanol, hydrogen sulfide (H2S) and cigarette smoke
- Makes ballpark measurements of total VOC concentration, as well as precise measurements of ambient temperature, relative humidity (RH), and the Dew Point and Wet Bulb temperatures
- Logs up to 32,000 data points. The meter's entire capacity can be devoted to VOC readings, or devoted one-third each to VOC, ambient temperature and RH readings
- Powerful data logging software that downloads readings to a PC for display/printing as a table or graph. The software supports four data logging modes-including starting and stopping recording without a PC
- Adjustable high VOC concentration audible alarm
- Min/Max memory (for all measured parameters) and data hold
- Separate automated procedures for VOC zero adjustment and background calibration
- Manually offsettable temperature and RH sensor drift
- Large backlit dual-readout LCD
- Auto power off (can be disabled for data logging)
- Tripod mount
Includes
- PC-compatible interface/data logging program on mini-disc
- USB cable
- AC adaptor
- Soft pouch
Dimensions
- 8.3 x 2.4 x 1.0 in. (210 x 60 x 25mm)
