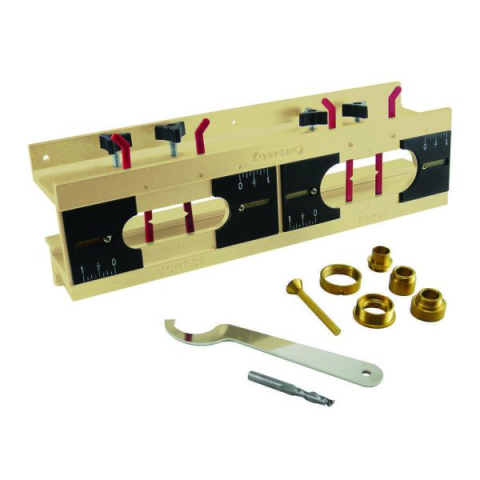

General Tools 870 E-Z Pro Aluminum Mortise & Tenon Jig Kit
- Overview
- Customers Also Bought
- Your Recently Viewed Items
- Reviews
Click to zoom
Overview
Ready to use right out of the box to produce 1/4" mortise and tenon joints for cabinets, furniture and frames. Included are bushings for also producing 3/8" and 1/2" joints with other size optional spiral up cut bits (not included). Using A plunge router with the jig, woodworkers of all skill levels can cut fully aligned mortises and tenons ranging from 1/4" to 1/2" wide and from 1" to 3" long. The jig can be mounted directly on a workbench or onto a board that can be clamped in a vise or to a bench.
- ALL-IN-ONE SOLUTION - Provides a quick and easy way to cut both a matching mortise and tenon with a single jig
- DURABLE - Jig body made of solid aircraft grade aluminum
- ACCURATE - Integrated clamps and swing arms align and secure wood for accurate joints
- VERSATILE - Can easily handle wood stock ranging from 1/2-inch to 1-1/2-inch thicknesses and can cut multiple mortises in a single long piece
- INCLUDES - 1/4-inch high speed upcut spiral bit, bushing guides for 1/4-inch 3/8-inch and 1/2-inch tenons, two-part base plate/bushing adapter, centering tool and adjustment wrench
- Mortise & tenon thickness: 1/4 to 1/2 in.
- Mortise & tenon wdith: 1 to 3 in.
- Stock thickness: 1/2 to 1-1/2 in.
Dimensions
- 14-1/2 x 4-1/2 x 4 in.
Includes
- Jig
- #870B Router Bit
- Bushing kit
- Allen wrench
