FRC SNB100-C00 inView 360 HD, 4-Camera Kit

InView 360 HD

inView 360 HD is an intelligent camera monitor system designed to assist low-speed maneuvering by providing the driver with a complete surround view of the vehicle in real time.

The system increases visibility around the apparatus providing the operator with a 360° bird's-eye view. In addition, the split screen monitor also displays one of four individual camera views automatically, dependent on driving operation; front, right, left or reverse.

This unique view allows the operator to see pedestrians and obstacles in close proximity to the apparatus or vehicle. The second view on the display switches between a front/left/right/rear view depending on the operational conditions. An in-cab toggle switch allows the operator to override the default camera view for complete control over the system.

The four live images are combined, blended and stitched capturing all surrounding area including blind spots of the vehicle.

Ability to Overlay "Outrigger" Graphics

Help reduce risk of accidents and costly repairs with graphic "Outrigger" overlays for vehicles like aerial apparatus.

Automatic Monitor Shut-Off

Based on a customer selected vehicle speed, the monitor can automatically shut off the video display to help minimize operator distraction.

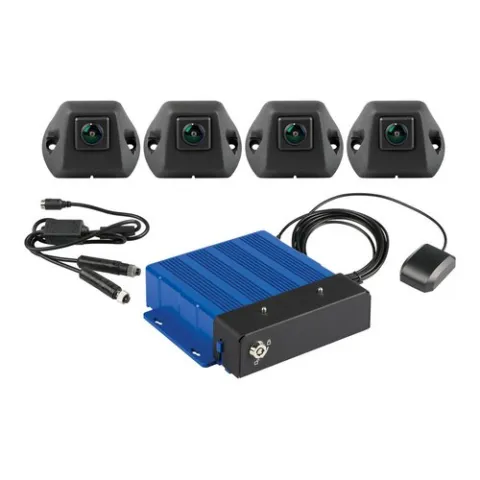

SNB100-C00 - inView 360 HD Kit:

• (1) Front camera
• (1) Cable kit
• (1) Rear camera
• (1) Toggle switch
• (2) Side cameras
• (1) ECU
• (1) Control

For more information, please see Data Sheet
