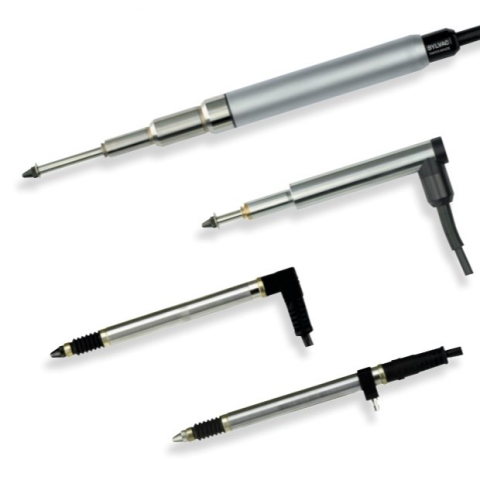

Fowler 54-618-500-0 P25 Capacative Probe, 25mm Range

Probes are made of stainless steel, heavily chrome-plated and supplied with 5' cable and standard carbide contact point .078"/2mm ball diameter. The friction bearing design provides smooth measuring for exceptional accuracy. Probes are shock-proof and unaffected by magnetism or humidity.

Accessories include boots, points, lifting levers, foot pedal lifters, stands, stages and extralength cable. Water-resistant probes, special cables up to 75' (20m) for all Sylvac probes, and a variety of measuring forces are available. Contact our Technical Staff for quotations.

• Coefficient of thermal expansion: 0.01µm/°C
• Temperature Range: 0-50°C
• Cable Length: 5'/1.5m
• Contact Point Thread: M2.5
• Probes used with any Fowler/Sylvac Display or Multiplexer.
• Meas. Range 25mm
• Meas. Forse .6-1N
• Repeatability .00001"/.2µm
• Maximum Error .00005"/1.2µm
• Cable Angle - straight
• Vacuum - no
• Boot - no
