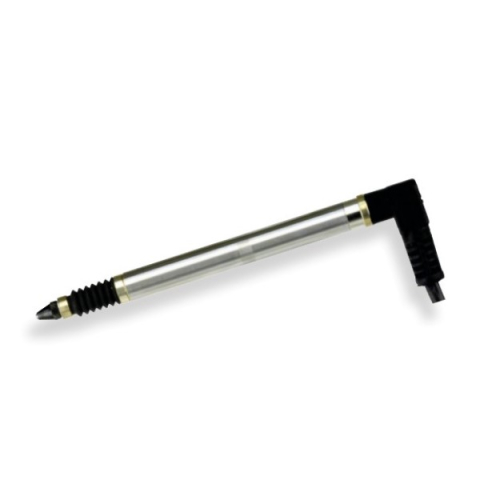

Fowler 54-618-360-0 P5 Capacative Probe, 5mm Range, Lateral (90 deg)

Probes are made of stainless steel, heavily chrome-plated and supplied with 5' cable and standard carbide contact point .078"/2mm ball diameter. The friction bearing design provides smooth measuring for exceptional accuracy. Probes are shock-proof and unaffected by magnetism or humidity.

Features:

• Coefficient of thermal expansion: 0.01µm/°C
• Temperature Range: 0-50°C
• Cable Length: 5'/1.5m
• Contact Point Thread: M2.5
• Probes used with any Fowler/Sylvac Display or Multiplexer
• Meas. Range 5mm
• Meas. Force .6-1.2N
• Repeatability .00001"/.2µm
• Maximum Error .00004"/1µm
• Cable Angle - right
• Vacuum - no
• Boot - yes
