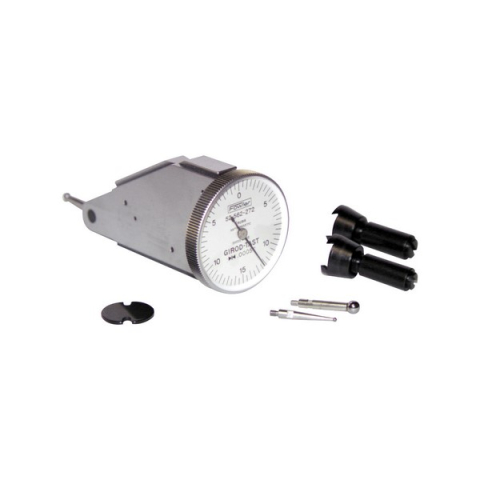

Fowler 52-562-474-0 0.020" Girod "Vertical" Test Indicator

Fowler-Girod Test Indicators have long been regarded internationally as "the best", incorporating Swiss quality and workmanship.

Features:

• Rugged one-piece housing, corrosion resistant with satin chrome finish.
• For high accuracy and repeatability, six bearings are jeweled. Reinforced flanges.
• Adjustable ball bearings guarantee perfect point movement under all conditions.
• Contact point can be displaced 210°. Automatic reversing contact point.
• Supplied with 0.040", 0.080" and 0.120" carbide contact points on all indicators except No. 52-562-474-0 and No. 52-563-474-0 which are supplied with only one point.
• Shockproof and nonmagnetic.
• Microfine graduations.
• Three dovetails; top, back and bottom for easy mounting and positioning.
• Measuring pressure-7 grams.
• Movement not influenced by any outside pressures, and measuring value transmitted by means of rack and pinion.
• Face Dia. 1" and 1-1⁄2" for easy reading.
• Adjustable bezel and dial are easily set and reset to zero.
• Inch series supplied with two dovetail clamping stems: 7⁄32" No. 52-565-091-0 and 1⁄4" No. 52-565-092-0.  Metric series supplied with dovetail clamping stems: 5⁄32" (4mm) No. 52-565-090-0 & 5⁄16" (8mm) No. 52-565-093-0.
• Includes fitted case
• Range:0.020''
• Graduation:0.0005''
• Dial Diameter:1-1/2''
• Dial Reading:0-10-0
• Point Length:1.500''
