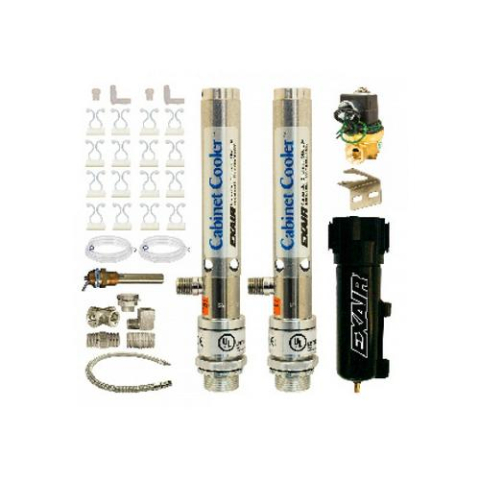

Exair HT4360 Cabinet Cooler NEMA 12 High Temp Thermostat Control System, 4,000 Btu/Hr

High Temperature Cabinet Coolers for ambient temperatures of 125°F to 200°F (52°C to 93°C) include an adjustable thermostat factory set at 95°F (35°C). Dirt and dust resistant NEMA 12 thermostat control systems are the most efficient way to operate a Cabinet Cooler. They save air by activating the cooler only when internal temperatures approach critical levels. Thermostat controlled cooler systems are the best option when experiencing fluctuating heat loads caused by environment or seasonal changes. EXAIR Cabinet Coolers incorporate a vortex tube to produce cold air from compressed air - with no moving parts. The compact Cabinet Cooler can be installed in minutes through a standard electrical knockout. NEMA 12 (IP54) Cabinet Cooler® Systems (dust-tight, oil-tight) are ideal for general industrial environments where no liquids or corrosives are present. All Cabinet Coolers are UL Listed and CE compliant.

Applications

• Programmable controllers
• Line control cabinets
• Motor control centers
• Relay panels
• NC/CNC systems
• Modular control centers
• CCTV cameras
• Computer cabinets
• Cool laser housings
• Electronic scales

Advantages

• Withstand ambient temperatures up to 200°F
• Compact
• Quiet
• Install in minutes
• Maintain NEMA 12 integrity (IP54)
• Stabilize enclosure temperature and humidity
• No CFC's
• No moving parts - maintenance free
• Mount in standard electrical knockout
• Stop nuisance tripping
• Stop heat damage
• Eliminate fans and filters
• Eliminate lost production
• Stop circuit drift
• Provide protection from dirt and dust

For more information, please see Catalog
