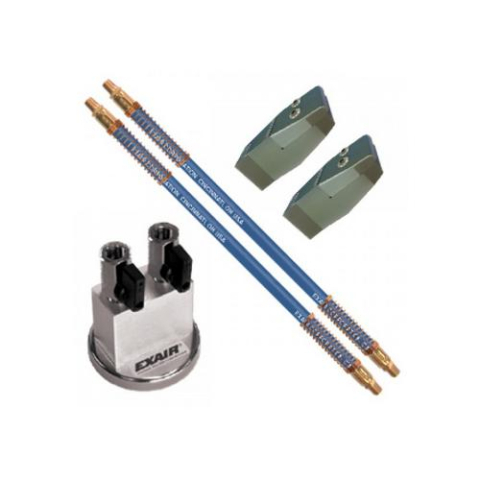

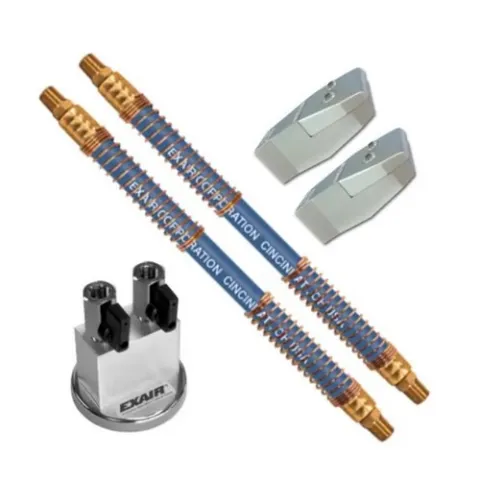

Exair HP1125-9430 (2) 2" High Power Flat Super Air Nozzles with (2) 30" Stay Set Hoses and Mag Base, Zinc Aluminum

The 2" High Power Flat Super Air Nozzle with Stay Set Hose and Mag Base includes EXAIR's Flexible Stay Set Hose for applications where repositioning or aiming is required and a Two Outlet Magnetic Base for firm attachment to metallic machinery. EXAIR's 2" High Power Flat Super Air Nozzles produce a flat 2" (51mm) wide airstream with a strong blowing force of 2.2 pounds (1,134 grams). The adjustable force is more than three times that of ordinary air nozzles. It uses EXAIR's patented technology to maximize entrained airflow while reducing noise levels.

Applications

• Part cleaning
• Chip removal
• Liquid blowoff
• Part cooling
• Material conveying
• Part ejection
• Fiber conveying
• Air assist

Advantages

• Reduced compressed air cost
• 10 dBA average noise reduction
• Conserve compressed air
• Improved blowoff performance
• Compact
• Improved safety
• Meets OSHA noise level requirements
• Meets OSHA pressure requirements
• Improved production

Material:

Zinc Aluminum alloy - general purpose applications. Max temp 250°F (121°C).

For more information, please see Catalog
