Exair ATEX4725 Aluminum 1.700 Btu/hr ATEX Cabinet Cooler, Cont Oper

The Aluminum Continuous Operation ATEX Cabinet Cooler is engineered and approved for use on purged electrical enclosures within classified areas. It has been tested by UL and meets the stringent ATEX requirements for Zones 2 and 22.

This ATEX Cabinet Cooler is a reliable and cost-effective solution for cooling purged electrical control panels in such environments. It provides continuous operation and constant cooling, incorporating a low-pressure relief valve that closes and seals when the cooler is not in use, maintaining the integrity of a NEMA 4 enclosure (dust-tight, oil-tight, splash-resistant, suitable for indoor and outdoor use).

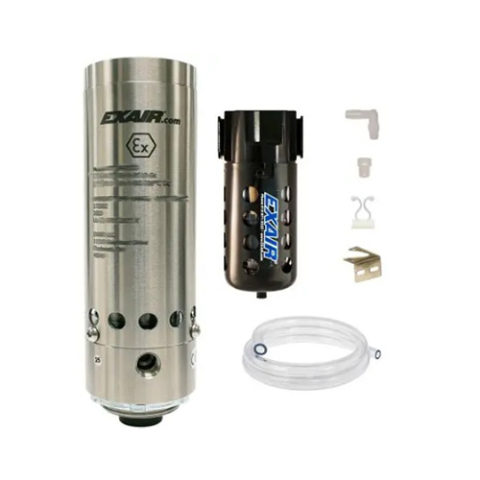

With a cooling capacity of 1,700 Btu/hr, this Cabinet Cooler can be installed in minutes through a standard electrical knockout. It comes with a water-dirt filter separator to prevent water condensate and dirt from entering the enclosure, as well as a cold air distribution kit to direct airflow for circulation or onto hot spots.

The unit is CE compliant. However, EXAIR's ATEX Cabinet Cooler is not a purged and pressurized control system and should not be relied upon as a substitute for one. It is designed to be used in conjunction with a purged and pressurized control system.

Features:

• Rated for Zone 2 and 22
• Low cost, compact
• Quiet
• Install in minutes
• Maintain NEMA 4 integrity (IP66)
• Stabilize enclosure temperature and humidity
• No CFC's
• No moving parts - maintenance free
• Mount in standard electrical knockout
• Stop nuisance tripping
• Stop heat damage
• Eliminate fans and filters
• Eliminate lost production
• Stop circuit drift
• Stop dirt contamination
• Provide washdown protection

Applications

• Programmable controllers
• Line control cabinets
• Motor control centers
• Relay panels
• NC/CNC systems
• Modular control centers
• CCTV cameras
• Computer cabinets
• Laser housings
• Electronic scales
