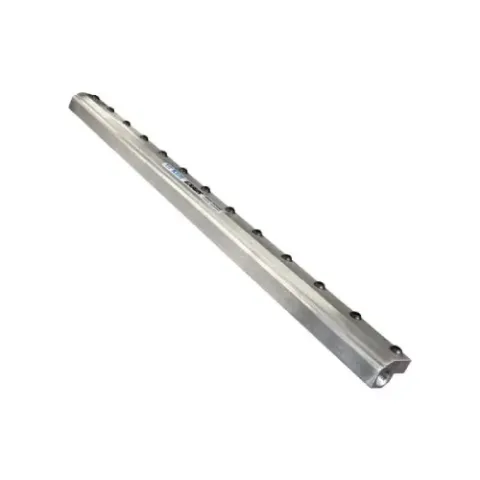

Exair 2024 Standard Air Knife, Aluminum, 24"

Features:

• 24" Aluminum Standard Air Knife
• The Standard Air Knife is EXAIR's original air knife design.
• It uses a Coanda profile which turns the airflow 90 degrees from its outlet.
• This creates a low pressure area capable of entraining ambient air at a ratio of 30:1 while producing a powerful airflow; but does have a higher operating cost than the Super Air Knife.
• Overall length is 1" (25 mm) longer than the airflow length.
• Material:
  • Aluminum - The aluminum Standard Air Knife is suited to a wide variety of environments where corrosion or contamination is not a factor. The aircraft grade aluminum construction with plastic shim is very durable for general purpose applications. Stainless steel screws are used to eliminate corrosion in damp locations. It can withstand temperatures up to 180°F (82°C).

Applications:

• Part drying after wash
• Sheet cleaning in strip mills
• Conveyor cleaning
• Web drying or cleaning
• Part or component cooling
• Environmental separation
• Pre-paint blowoff
• Bag opening / filling operations
• Scrap removal on converting operations

Advantages:

• Up to 10 dBA noise reduction
• Reduced air consumption
• 30:1 air amplification
• Compact, rugged, easy to install
• No moving parts
• Compressed air inlets on each end
• Variable force and flow

For more information, please see Data Sheet
