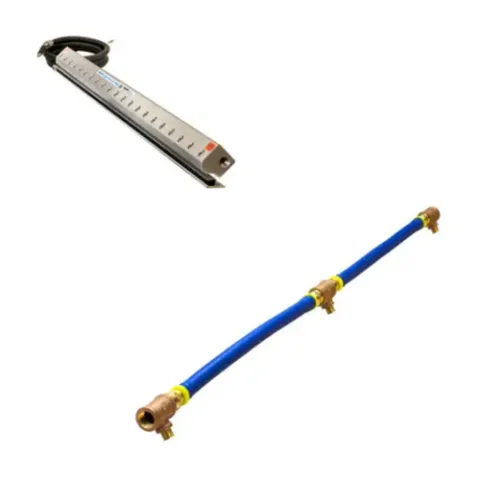

Exair 112036PKI 36" Gen4 Super Ion Air Knife with Plumbing Kit

For consistent performance across its length, EXAIR Gen4 Super Ion Air Knives that are 24" or longer must have compressed air supplied to multiple inlets. EXAIR's Gen4 Super Ion Air Knife with Plumbing Kit includes all the tubes and fittings installed to ensure smooth, even airflow so that static removing ions can be distributed evenly across plastics, webs, sheet stock and other product surfaces where tearing, jamming or hazardous shocks are a problem. The laminar sheet of air sweeps surfaces clean of static, particulate, dust and dirt. Production speeds, product quality, and surface cleanliness can improve dramatically.

Applications:

• Web cleaning
• Molding machinery
• Sheeters and trimmers
• Cleaning parts
• Pre-paint dust removal
• Shrink wrappers
• Package cleaning
• Bag opening/fill operations
• Printing equipment

Advantages:

• Up to 34% improved performance
• Rugged metal armored and electromagnetic shielded cable
• Integrated ground eliminates additional ground connection
• Durable stainless steel connections to Power Supply
• Modular power supply cable eases connections and routing.
• Low air consumption
• Uniform airflow across entire length
• Quiet
• Effective up to 20 feet (6.1m)
• Shockless, non-radioactive
• Compact, rugged, easy to install
• Unlimited system lengths of uninterrupted airflow
• Low maintenance
• Variable force and flow

Gen4 Super Ion Air Knife Performance

* per foot (305mm) of length, ** 6" (152mm) from target

Gen4 Super Ion Air Knife Dimensions

How the Gen4 Super Ion Air Knife Works

Compressed air flows through an inlet into the plenum chamber of the Gen4 Super Ion Air Knife. The flow is directed to a precise, slotted orifice. As the primary airflow exits, it creates a uniform sheet of air across the entire length that immediately pulls in surrounding room air. An electrically powered ionizing bar fills the curtain of air with positive and negative charges. The airstream delivers these static eliminating ions to the product surface where it is instantly neutralized and cleaned of dust and other particulates.

Static Eliminator Standards and Certifications

EXAIR's Gen4 Super Ion Air Knife complies with OSHA's Safety Requirements, the EU General Product Safety Directive (2001/95/EC) and meet the noise limitation requirements of the EU Machinery Directive (2006/42/EC). All sound level measurements are taken at 3 feet away.

Gen4 Ionizing Bars are UL Component Recognized to U.S. and Canadian safety standards, and are CE, EMC and RoHS compliant.

Kit includes:

• Super Air Knife
• Gen4 Ionizing Bar assembly
