Exair 1103SS-9474 (2) Stainless Steel Mini Super Air Nozzles with (2) 24" Stay Set Hose and Magnetic Base

The 1/8 NPT Mini Super Air Nozzles provide a forceful, concentrated stream of high velocity airflow. It has fewer holes than the larger Super Air Nozzles, resulting in lower sound levels, air consumption and force. The Mini Super Air Nozzle with Stay Set Hose and Mag Base includes EXAIR's Flexible Stay Set Hose for applications where frequent repositioning is required and Two Magnetic Bases for firm attachment to metallic machinery.

Applications:

• Part cleaning
• Chip removal
• Liquid blowoff
• Part cooling
• Material conveying
• Part ejection
• Fiber conveying
• Air assist

Advantages:

• Reduced compressed air cost
• 10 dBA average noise reduction
• Conserve compressed air
• Improved blowoff performance
• Compact
• Improved safety
• Meets OSHA noise level requirements
• Meets OSHA pressure requirements
• Improved production

Type 316 Stainless Steel - high temperatures, corrosive environments, and mechanical wear. Max temp 1000°F (538°C).

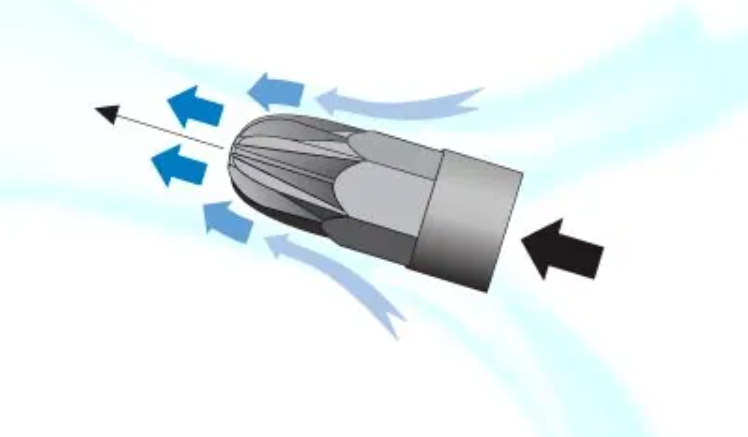

How EXAIR Air Nozzles Work

Air Nozzles use the Coanda effect to amplify compressed airflow up to 25 times or more. Compressed air is ejected through a series of nozzles on the outer perimeter. As the air travels along the outer wall of the nozzle, surrounding air (blue arrows) is entrained into the stream. The airstream that results is a high volume, high velocity blast of air at minimal consumption. The air is always ejected so it can vent safely, well below OSHA dead end pressure requirements, should the nozzle end be blocked.

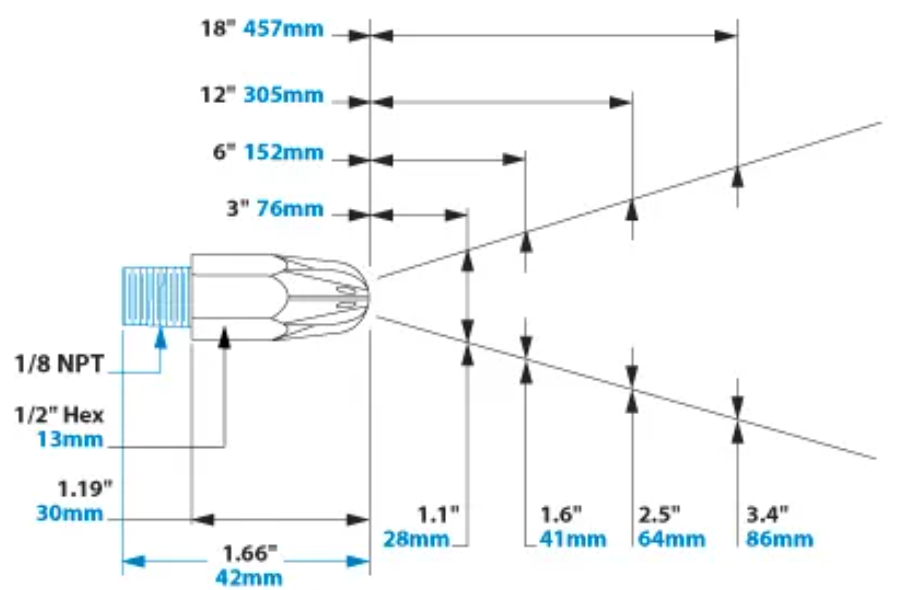

Mini Super Air Nozzle Dimensions & Airflow

Super Air Nozzle Standards and Certifications

EXAIR Super Air Nozzles comply with OSHA's Safety Requirements, the EU General Product Safety Directive (2001/95/EC) and meet the noise limitation requirements of the EU Machinery Directive (2006/42/EC). All sound level measurements are taken at 3 feet away.

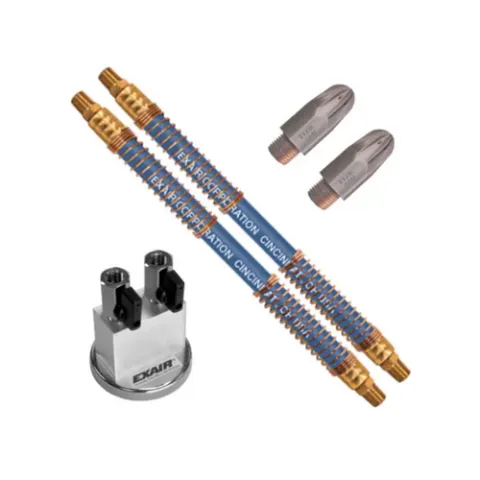

Kit includes:

• (2) Air Nozzles
• (2) Stay Set Hose
• Double Magnetic Base
