Exair 1004SS 316 Stainless Steel Back Blow Air Nozzle, M4x0.5

Features:

• The EXAIR Back Blow Air Nozzle is engineered to clean the inside of a pipe, tube, hose, or channel.
• An array of holes provides a forceful 360° airflow to remove coolant, chips, or debris created during machining processes.
• This nozzle prevents chips from being blown further into a pipe or out the end, which could create a safety hazard.
• Since the airflow is directed back toward the operator, personal protective equipment is recommended.
• It delivers high-performance operation suitable for industrial applications.
• Type 316 Stainless Steel high temperatures, corrosive environments, and mechanical wear. Max temp 1000°F (538°C)
• St. St. Back Blow Air Nozzle, M4x0.5

Application

• Part cleaning
• Chip removal
• Liquid blowoff
• Part cooling
• Material conveying
• Part ejection
• Fiber conveying
• Air assist

Advantages

• Reduced compressed air cost
• 10 dBA average noise reduction
• Conserve compressed air
• Improved blowoff performance
• Compact
• Improved safety
• Meets OSHA noise level requirements
• Meets OSHA pressure requirements
• Improved production

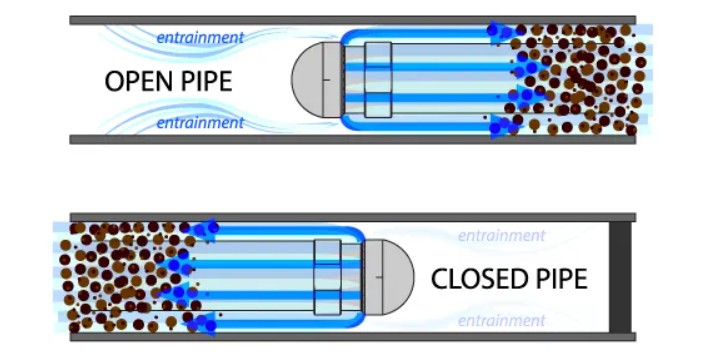

How EXAIR Air Nozzles Work:

• The air nozzle uses the Coanda effect to amplify compressed airflow up to 25 times or more.
• The Back Blow Air Nozzle ejects air from an annular ring of nozzles located on the outer perimeter.
• The ring of nozzles directs air back toward the air inlet at an angle, forming a cone of high-velocity airflow.
• The resulting airstream produces a high-volume, high-velocity blast of air with minimal compressed air consumption.
• The air is ejected safely and cannot be blocked, maintaining compliance with OSHA dead-end pressure standards.
