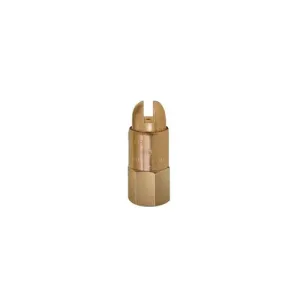

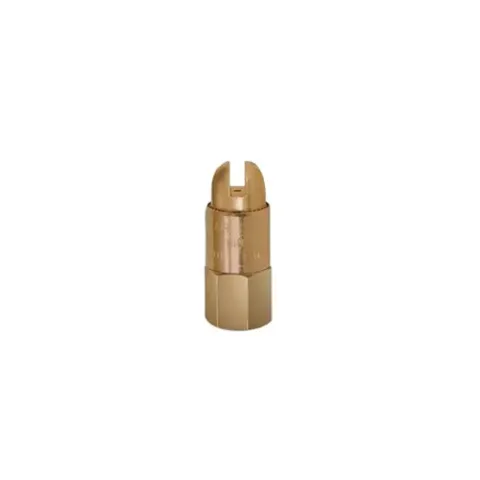

Exair 1002 Safety Air Nozzle, 1/4 FNPT

EXAIR's Safety Air Nozzles eject a small amount of compressed air 360° around the outer ring that combines with the air ejected from the center hole to produce a high volume, high velocity blast of air. The slotted end allows air to vent safely and prevents blocking the outlet.

Features:

• Reduced compressed air cost
• 10 dBA average noise reduction
• High velocity airstream
• Compact
• Installs with a socket wrench
• Meets OSHA noise level requirements
• Meets OSHA pressure requirements
• Models available in brass and stainless steel
• Type 303 Stainless Steel - This is the most common grade of stainless steel. It offers good strength and is best suited to mildly corrosive environments. It can withstand temperatures up to 800°F (427°C).
• Brass - general purpose applications. Max temp. 400°F (204°C).
• Air Nozzles use the Coanda effect to amplify compressed airflow up to 25 times or more. Compressed air is ejected through a series of nozzles on the outer perimeter. As the air travels along the outer wall of the nozzle, surrounding air (blue arrows) is entrained into the stream. The airstream that results is a high volume, high velocity blast of air at minimal consumption. The air is always ejected so it can vent safely, well below OSHA dead end pressure requirements, should the nozzle end be blocked.

Application

• Part cleaning
• Chip removal
• Liquid blowoff
• Part cooling
• Material conveying
• Part ejection
• Fiber conveying
• Air assist
