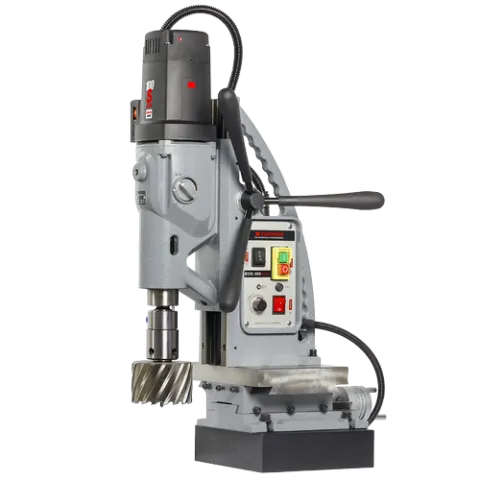

Euroboor ECO.100S+CT Magnetic Drilling Machine 7/16"-4", with Cutting Table

The Euroboor ECO.100S+/CT magnetic core drilling machine cuts holes up to ø 100 mm and is particularly suitable for tapping and mild milling. The Cross Table gives you the advantage of having a magnetic drilling machine which can be positioned with high accuracy over a range of 110 mm (x-axis) and 120 mm (y-axis) after the magnet is already attached to the surface. Due to dynamic positioning during the drilling procedure, this machine can also be used for mild milling. The milling feature gives you the advantage of being able to create slots. Therefore, you can work on even more complex workpieces with one machine. It has an extremely powerful 1,900 W motor with an oil-lubricated four-speed gearbox and innovative electronics which offer more safety.

Features:

• Cross Table base to give dynamic positioning during drilling procedure over a range of 110 mm (x-axis) and 120 mm (y-axis)
• Milling feature to create slots and work on complex workpieces
• Switch to Tapping to create perfectly centered threads, while machine stays fixed on workpiece
• Strong dual coil CNC machined 2-way magnet, causing the machine to use less energy, generate less heat and therefore lasts longer
• Advanced safety features to reduce the risks of damaging the machine, tools, workpiece, armature, control unit(s) or hurting the operator
• Morse Taper 3 spindle with integrated tool cooling and lubrication
• Suitable for use in areas and workplaces where power supply is of less quality
• Timely service notification to avoid additional costs of unexpected downtime or unnecessary part replacement

Package contents:

• 1 x ECO.100S+/TD Magnetic drilling machine
• 1 x safety guard
• 3 x handles
• 1 x hex key 2.5 mm
• 1 x hex key 4 mm
• 1 x hex key 5 mm
• 1 x lubrication system
• 1 x safety chain
• 1 x bottle (200 ml) of IBO.10 cutting oil
• 1 x arbor MT3 - 19,05 Weldon (3/4"), including lubrication ring (IMC.30/19-N)
• 1 x morse taper ejector drift key
• 1 x user manual
• 1 x safety ear protection
• 1 x safety goggles
• 1 x safety gloves
