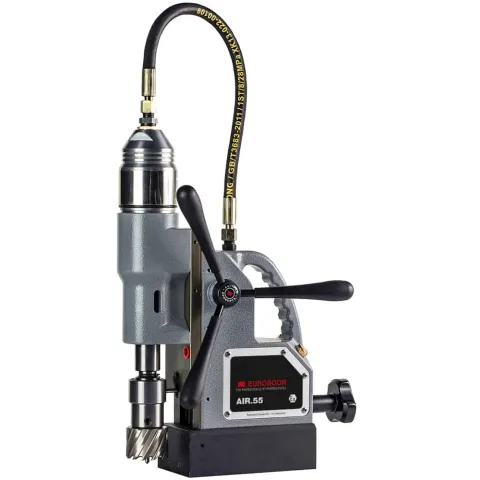

Euroboor AIR.55 Pneumatic Magnetic Drilling Machine, 55 mm - 2-3/16", 6.3 bar

Pneumatic magnetic drilling machine, annular cutters max. dia 55 mm - 2-3/16", power supply pressure 6.3 bar, power supply flowrate 66 m³/hr, power supply connection air hose connection with inside diameter 3/8", rotation direction clockwise.

The portable Euroboor AIR.55 pneumatic drilling machine is equipped with an air-powered, spark-free motor and a non-electric, permanent magnet base. Connected to a compressor, it can be used for drilling on flat workpieces where electrical machines are less convenient or not allowed, especially in areas and spaces with potentially explosive atmospheres, such as offshore and petrochemical industries, as well as mining.

Features:

• Single operation knob for magnet and motor with ‘deadman's' control
• Also available with permanent tube magnet for both pipe and flat material
• Magnet features
  • Permanent, non-electric monobloc magnet system
  • No loss of magnetic grip in case of electric power cuts or fluctuations
  • Powerful hold, even on thinner steel thicknesses

Includes:

• 1x metal case
• 1x magnetic drilling machine AIR.55
• 3x (Capstan Hub) handles
• 1x spindle holder MT 3 - 19.05 (3/4"), including cooling/lubrication ring (IMC.30/19-N)
• 1x drift key
• 1x lubrication/cooling system
• 1x Allen key 2.5 mm (3/32")
• 1x Allen key 4 mm (5/32")
• 1x Allen key 5 mm (13/64")
• 2x open-end spanner 19/22 mm (3/4"-7/8")
• 1x protection guard
• 1x safety chain
• 1x ear protection
• 1x safety goggles
• 1x safety gloves
• 1x user manual

For more information, please see Data Sheet
