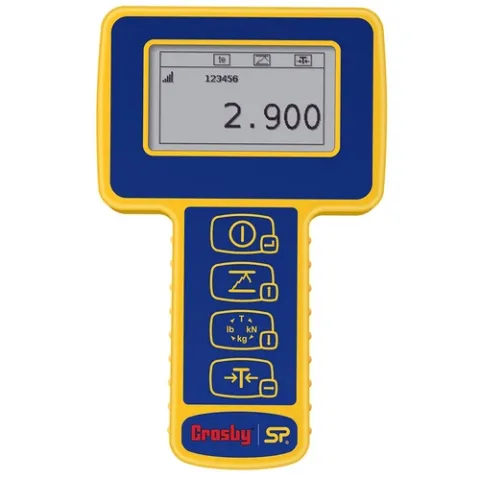

Crosby Straightpoint HHP-TS Handheld Plus for Cabled Running Line Dynamometers (TS Models)

The Handheld Plus is a rugged and versatile digital handheld display. It has an extensive range of features and is suitable for all Crosby Straightpoint loadcell products.

At the heart of the ergonomically designed Handheld Plus is a powerful PCB, providing industry-leading features such as user selectable units of measure (metric tons, lbs, kg, and kN), programmable audible overload alarm (HHP & SW-HHP), peak hold, pre-set tare, and a user resettable (HHP & SW-HHP) overload counter.

This crucial overload alarm counter is a requirement for many safety and quality control departments because it keeps track of overload events, allowing the loadcell in question to be removed from service immediately, following the calibration voiding overload event. The loadcell in question can then be sent out for proper testing and, if necessary, recalibration before re-entering service.

The HHP is suitable for connection via cable to any Crosby SP cabled loadcell product and easily adapted to any other manufacturers' loadcell product with a mv/v output.

Features:

• Overload counter
• User settable 90db audible overload alarm (not ATEX)
• Multiple display units - tonnes, lbs, kg and kN
• 100Hz Peak hold
• Pre-set tare
• Unrivalled Wireless range 1000m/3280ft
• Operating Temperature: 14° F (-10° C) to 122°F (50° C)
• Battery life: 100 hrs continuous
• Display type: 240x128 Multi line dot matrix with backlight
• Display rate: 3Hz
• Protection: IP65/NEMA 4X
• Handheld for TS models without display
