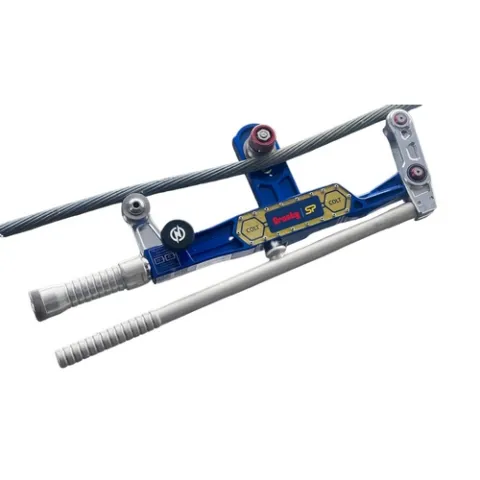

Crosby Straightpoint COLT5T COLT Clamp-On-Line-Tensiometer, 5 t / 11000 lb Capacity

The Crosby Straightpoint COLT is a lightweight wire rope tension meter, for fast and accurate measurement of tensions up to 11,000lb or 5000 kg and up to 1" or 25mm diameter.

Manufactured using an integral, high accuracy, Bluetooth module, the COLT transmits load data wirelessly to any smart device running Straightpoint free Android or iOS app.

Constructed from aerospace grade aluminum, the COLT digital tensiometer is lightweight and easy to handle. Its main operational application is to be attached to wires/cables that are already under tension. Once in place, it allows the operator to quickly check tension on cables or wire ropes set at any angle.

A built-in magnetic smart device holder allows the COLT to be used as a traditional tension meter with on board display, or the smartphone can be handheld or mounted elsewhere.

Supplied in a purpose made carry case, the COLT is portable and utilizes standard alkaline batteries, making it perfect to carry out on-site cable tension testing anywhere in the world.

An included calibration verification tool (CVT) allows the operator to self-check and verify calibration accuracy, in the field, if required.

Features:

• Lightweight wire rope tension meter for fast and accurate measurement of tensions up to 11,000 lb and up to 1 in diameter.
• Constructed from aerospace grade aluminum.
• Unlimited wire rope calibration database via Android or iOS app.
• Built-in magnetic smart device holder for on board display.
• Main swivel joints fitted with high-quality bearings.
• Lever ratio of 5.3:1 allows effortless, safe, clamping onto pre-tensioned wire ropes.
• Wireless Bluetooth 4.2 enabling operator to stand a safe distance away, up to 328 ft.
• Quick intuitive adjustable center sheave makes changing wire rope sizes fast and easy.
• No easily broken external antenna.
• High waterproof resistant design IP67 or NEMA6 for all weather use.
• Long battery life of 1,000 hrs Bluetooth transmission time.
• As the library of wire rope diameters and constructions is increased each app user will benefit when they update free of charge.
• Max Line Reduction: 7/32" with a Ø3/8" wire rope
• Wire Rope Database: Infinite via Android or iOS app.
• Battery Type: 2 x 'C' cell batteries.
• Operating Temperature: -13°F to +158°F
• Accuracy: ±3% of full scale if wire rope Ø and construction known.
• COLT calibration rod is included as standard.

For more information, please see Data Sheet
