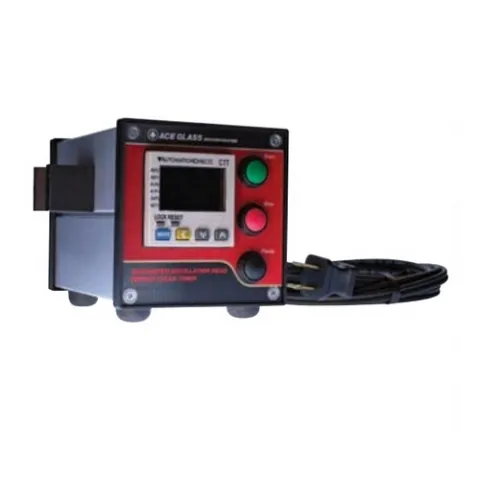

Ace Glass 6671-14 Repeat Cycle, Electronic Timer/Control

Repeat cycle timer control, bench top or rack mountable (has clamp for up to 3/4-inch rod), for regulating reflux ratio on distillation heads. Maximum ON/OFF time setting is 0.1 to 6000 seconds. Solid state relay and micro-processor-based timer control with back lite LCD display. Red output indicator LED. Output: 120v, 10A max., 50/60 Hz.

Features:

• Front toggle main power switch
• Rear mounted
• Fast acting
• Solid state 10A fuse
• Input/Output Power Rating: 120V, 10A Max., 50/60 Hz.
• Rear-mounted power outlet
• Front, Run/Standby-Set switch
• Four-digit adjust buttons

Supplied with side bar (removable) for mounting to 1/2-inch rod, 6' grounded neoprene line cord with NEMA plug and operating instructions on case. Light gray case with black front panel measures 114.3 mm (4-1/2 inches) wide x 158.7mm (6-1/4 inches) deep x 63.5mm (2-1/2 inches) high. Weight: 1 lbs. 10 oz.

For more information, please see Setup
