Ace Glass 5881-502 Ion Exchange Assembly

Ion exchange assembly

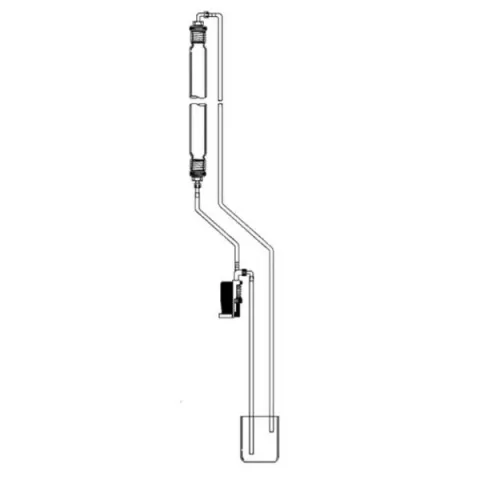

Designed for metal recovery using Ion-Exchange resins such as Amborane. Borosilicate glass column has #25 Ace-Thred at both ends. Polypropylene end fittings form a leak-tight seal with FETFE O-Rings. Fittings have 1/4" NPT female thread for connecting 3/8" O.D. flexible vinyl tubing from pump and reservoir using a 1/4" to 3/8" tubing connector. Normal flow is in upward direction.

Complete unit includes:

• (1) Column, 37mm I.D. x 450mm long
• (2) End Fitting, PP, #25 to 1⁄4" NPT
• (2) Connector Tube to M.P.T.
• (2) Elbow Tube to M.P.T.
• (1) End Fitting, PP, #25 to 1⁄4" NPT
• (1) Pump, Bellows Type, maximum capacity, 409mL/min. Self primes to four feet. Polypropylene bellows and swivel connections for 3/8" I.D. tubing. Operates on 110v, 50/60Hz.
• (1) Tubing, vinyl, 3/8" I.D. x 1/2" O.D. - 50 ft.
• (12) Tubing, PP, 3/8" O.D. x 75mm long
• (12) Screen Support, PP, 350 micron
• (12) Screen Support, PP, 295 micron
• (12) O-Ring, FETFE, Size -121
• (1) Ring stand, rectangular steel base, finished in hard enamel, 127mm x 229mm. Rod is 9.5mm O.D. zinc-plated, 508mm high.
• (1) Clamp, three-prong, vinylized jaws
