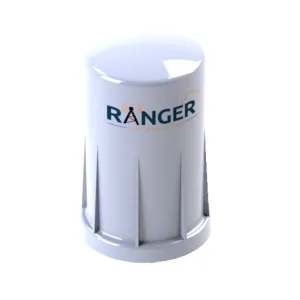

Seametrics 104181-01 Cellular Telemetry Ranger ComKit for iMAG/AG3000, 4"-12" Flanged Meter (Includes Ranger & Mounting Hardware)

The Ranger is an IoT (internet of things) cellular transmitter utilizingLTE-M/NB-IoT technology to bring sensor data directly to the cloud. Data is transmitted over cellular networks using the MQTT/Sparkplug protocol directly to the SignalFire Cloud for a complete monitoring and alarming service or can easily be integrated into a customer's existing system.

The built-in Ranger I/O consists of two (2) digital inputs, one (1) analog input and one (1) relay output. The digital inputs can detect on/off status or frequencies up to 2kHz for pulse counting and totalizing applications. The analog input supports a 1-5Vdc or 4-20 mA device and provides power to the sensor from the built-in battery pack. The relay output is a latching singlepole single to provide on/off control to a local device.

The Ranger comes complete with the mobile device ready SignalFire cloud interface to monitor, trend and receive alarms either by text or email message. In addition, the cloud platform provides for remote configuration and troubleshooting of the Ranger node and its attached sensor(s) and the relay output may be controlled from the cloud interface to remotely control pumps, motors, and valves.

Features

• LTE CAT M1 / NB-IoT connectivity to cloud services
• Integrated inputs/output for multi-sensors
• Data location from built-in GPS
• SignalFire cloud monitoring/alarming service
• Powers sensors from battery or external solar

Applications

• Irrigation
• Agricultural Automation
• Hydraulic Fracturing
• Well Usage Monitoring
• Water & Wastewater
• Municipal

For more information, please see Data Sheet and Manual
