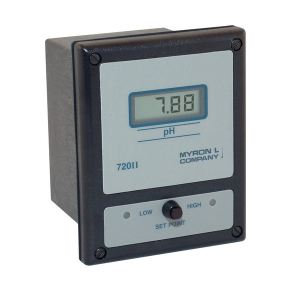

Myron L 723IIOEM-SC-4A 720 Series II OEM Digital pH Monitor/Controller w/ Second Alarm/control Module & 4-20 mA Self-Powered Isolated Output
- Specification
- Overview
- Customers Also Bought
- Your Recently Viewed Items
- Reviews
Overview
The advanced "isolated" circuitry of the 720 Series II pH Monitor/controllers guarantees accurate and reliable measurements - completely eliminating ground-loop and noise issues. The unique sensor preamp allows for longer distances between the sensor and the Monitor/controller without the loss of accuracy or reliability.
All Myron L Monitor/controllers feature a highly refined and precise Temperature Compensation circuit. This feature perfectly matches the NERNST equation correcting the displayed reading to 25°C. The TC may be disabled to conform with USP requirements.
Built-in electronic calibration allows for fast quality checks without buffers. (Note: for maximum system accuracy buffers are recommended).
A push-to-test button makes set point checks easy, while the internal alarm set discourages unauthorized adjustments.
Standard on all controller models is a heavy-duty 10 amp output relay, operating on either increasing or decreasing readings. Bright green/red LEDs indicate above/below set point readings.
All 720 Series II models feature an IP65/ NEMA 4X water-resistant and corrosion proof rated enclosure. Compact in size, at 152 x 122 mm/6 x 4.8 in., the 720 Series II models are suitable for panel, bench or surface mounting.
Features
- pH 0-14
- Choice of 3-1/2 digit display or analog meter
- Advanced "Isolated" circuitry
- Automatic temperature compensation to 25°C (NERNST equation)
- Isolated 0-10 VDC Recorder Output standard
- IP65/NEMA 4X water-resistant and corrosion-proof enclosure
- Built-in electronic calibration
- Single set point/alarm standard
- Adjustable set point hysteresis
- Solid State 24 VDC Output
- 10 amp relay operates on choice of increasing or decreasing reading
- Push-to-test set point check
- Internal set point discourages unauthorized adjustment
- Selectable 115/230 VAC
- Unique, easily installed sensors
- Heavy duty "F" model sensors may be installed in ANY direction including inverted
Benefits
- Affordable
- Ease of Operation
- Low Maintenance
- Ensures Product Quality
720 Series II Product Applications:
- Process Control
- Reverse Osmosis
- Seawater Desalination
- Waste Treatment
- Food Processing
- Plating
- Power Plants
- Laboratories
- Printing
- Paper & Pulp
- Boilers & Cooling Towers
- Potable Water
- Waste Water Treatment
- Swimming Pools & Spas
- Bleach Manufacturing
- Reduction of Chromate Waste
- Environmental
OEM = Main Circuit Board with Meter, or Liquid Crystal Display (LCD) and 12 in./305 mm Harness Only. For custom installations not requiring the enclosure.
For more information, please see Data Sheet
