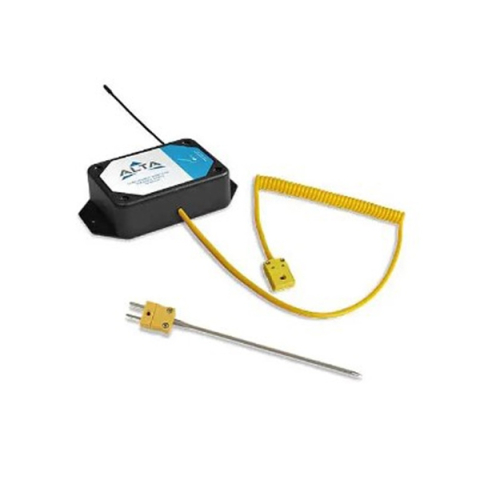

Monnit MNS2-9-W2-TS-TC-KT ALTA Wireless Thermocouple Sensor (K-Type Quick Connect with Probe) - AA Battery Powered (900 MHz)

Monnit MNS2-9-W2-TS-TC-KT ALTA Wireless Thermocouple Sensor (K-Type Quick Connect with Probe) - AA Battery Powered (900 MHz)
Click to zoom
  • Overview
  • Customers Also Bought
  • Your Recently Viewed Items
  • Reviews
  • Brand:Monnit
  • Part #:MNS2-9-W2-TS-TC-KT
  • Model #:ALTA
Condition: new
Warranty

Overview

The ALTA® Wireless Thermocouple Sensor produces a temperature measurement using a K-Type (nickel-chromium / nickel-aluminum) thermocouple.

The ALTA Wireless Thermocouple Sensor measures the ambient temperature based on a user-configurable time interval or Heartbeat. When performing a measurement, the sensor momentarily energizes a high-performance analog-to-digital converter (ADC) to measure the thermal voltage from the thermocouple and the cold-junction temperature voltage. These digitized voltages are then used to compute the temperature value of the K-Type thermocouple. On every Heartbeat, the sensor reports its current measurement to the gateway, making the data available in iMonnit or other approved data services.

Features

  • Measurement Range: -100°C to 260°C (-148°F to 500°F)
  • Typically Accuracy: ± 2.2°C (± .2.8°F)
  • Resolution: 0.1°C (0.18°F)
  • Configurable thresholds for critical condition monitoring

Applications

  • Ovens and Cooking Device Monitoring
  • Furnace and HVAC Monitoring
  • Exhaust Hood Monitoring
  • Boiler Monitoring
  • Turbine Exhaust Monitoring
  • Chimney/Flue Temperature Monitoring
  • Kiln Temperature Monitoring
  • High-Temperature Food Monitoring

Includes:

  • Wireless Sensor
  • Mounting Hardware
  • 2 x AA Batteries

For more information, please see Data Sheet
