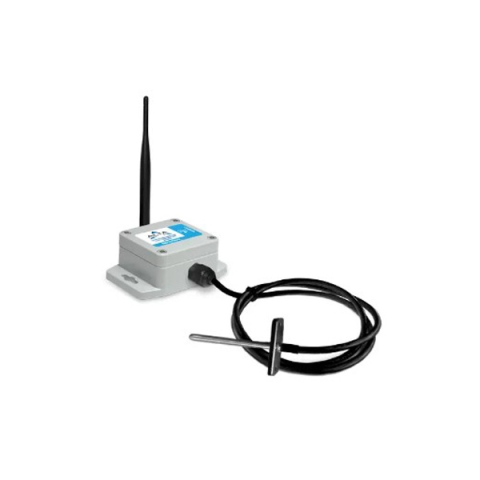

Monnit MNS2-9-IN-TS-DT-L08-SOL ALTA Industrial Wireless Duct Temperature Sensor with Solar Power (900 MHz)

The ALTA Wireless Duct Temperature Sensor uses an NTC thermistor with 2.67 meter (8') lead wires to accurately measure temperatures in duct work, while maintaining a sealed environment. It can be easily installed and mounted for long-term use.

The ALTA Wireless Duct Temperature Sensor measures duct temperature based on a user-configurable time interval or Heartbeat. When performing a measurement, the sensor momentarily energizes a thermistor in series with a precision resistor. This produces a voltage directly proportional to the temperature of the thermistor. The sensor converts the analog voltage signal to a digital value and computes the temperature measurement. On every Heartbeat, the sensor reports its current measurement to the gateway, making the data available in iMonnit or other approved data services.

Features

• Measurement Range: -40°C to 150°C (-40°F to 302°F)
• Resolution: 0.1°C (0.18°F)
• Standard Accuracy (at 25°C): ± 1°C (± 1.8°F)
• Calibrated Accuracy (at 25°C): ± 0.25°C (± 0.45°F)
• Configurable thresholds for critical condition monitoring

Applications

• Air duct temperature monitoring
• HVAC operation & testing
• Data center monitoring
• Coolers & freezers
• Environmental monitoring
• Smart machines & smart structures

Includes:

• Wireless Sensor
• Mounting Hardware
• Solar Panel

For more information, please see Data Sheet
