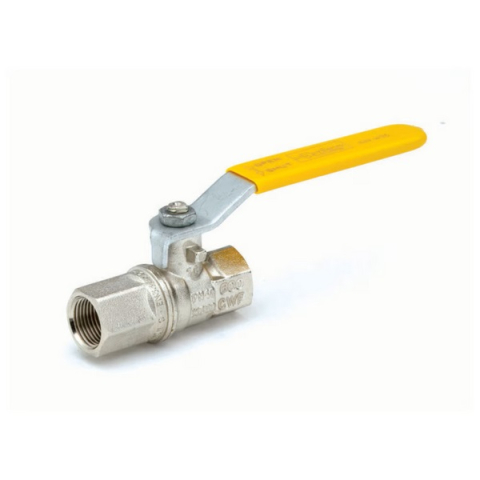

Legris BVG4-3/4L BVGL series 3/4" BSPP Female/Female Ball Valve with Lever Handle

Legris BVGL series ball valves with 3/4" BSPP thread are manufactured with long female threads in accordance to DIN 2999/ISO 228. This enables the valves to be used with Prestolok and brass adaptors but also Parker's range of steel hydraulic fittings, e.g. Tiple-Lok, O-Lok, EO, and BSPP coned adaptors.

These ball valves are fitted with an anti extrusion stem to prevent blow out in the case of pressure peaks. The stem is sealed with two Fluorocarbon O-rings for maximum safety and performance. All valves are full-flow. This limits the turbulence created by the passage of fluid across the valve, minimizing pressure drop.

Markets

• Industrial
• Transportation
• Oil & Gas
• Chemical

Features/Benefits

• Nickel plated brass body
• Chrome plated brass ball
• PTFE seats/seals
• Fluorocarbon stem seal

Applications

• Automotive
• Cleaning Equipment
