Overview
1" x 30lt, BRASS Utility Gas Ball ValveFeatures
- 30LT
- Tamper Resistant Lockwing Cap
- 2 FKM O-Rings
- Meter Nut and Swivel Connects Directly to Meter
- Full Port Design to Accommodate
- Industry Leading Stop Changers
- Lockwing Accommodates Standard Barrel Locks
- Maintenance Free Design
- Patented Security Shutter and Lockwing Tab - US Patent No. 6,648,009
- 100% Leak Tested
- 100% Made in Italy
- Leakproof Stem - Lifetime Warranty
Approvals
- CSA Certified
- CGA 3.16 (125G)
- ANSI B16.33 (125G)
- Meets or exceeds applicable part of DOT 192
- MSS SP-110
Pressure Rating
- 125 PSIG
- Temp range: -40F to 300F

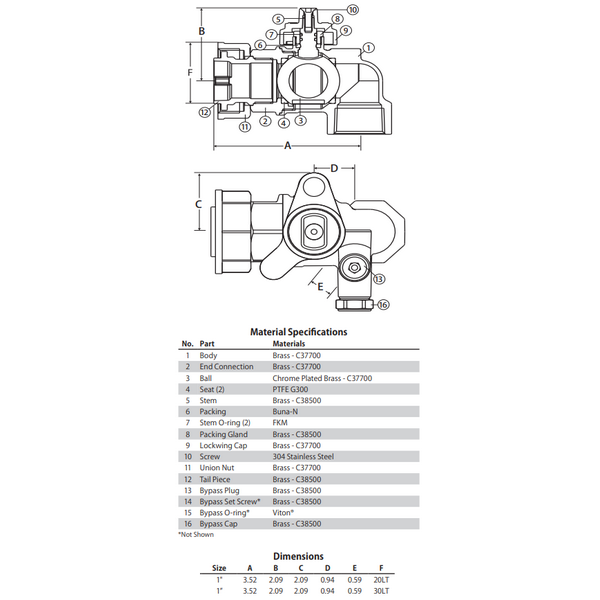

Material Specifications and Dimensions
