Fowler 54-565-100-1 Bowers 0.787" - 3.94"/20 - 100mm Ultima Bore Gaging Set

Featuring Fowler Bowers historic quality and high-accuracy the Ultima Bore Gaging System is the next generation of Bower's famous Super-Bore line of bore gages and accessories.

Features:

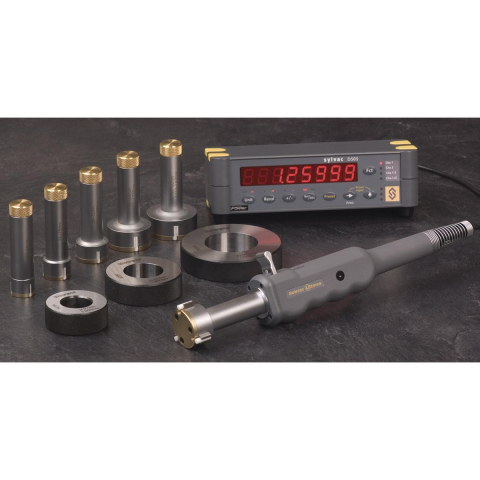

Set includes: handle, rings and heads - does not include readout
Measuring range: 0.078" - 12.3"/2 - 310mm
Resolution: 0.00001"/0.0001mm
Constant spring pressure ensures top repeatability
Positive feel when heads self-center in the bore
"FASTFIT" measuring heads for rapid replacement
UKAS certificates standard for all measuring heads
UKAS certificates standard for all setting rings
Ceramic anvils on heads above 0.472"/12mm
Blind-bore measurement standard above 0.472"/12mm
Possible to connect several probe holders to one single readout to measure different bore sizes at one measuring station
The complete range of Bowers special heads are available for the Ultima (grooves, threads, splines, deep-bores etc.)
Depth stops available for all heads
Extensions available for deep bore measurement

Special features:
Greater accuracy
Utilizes Bowers' "FASTFIT" measuring heads
Setting rings manufactured to DIN Standard 2250 part 2
Extended head ranges (above 14mm) for greater flexibility and cost-effective measurement
All 2-6mm sets supplied with depth-stop as standard


*Sylvac display is not included
