Fowler 53-900-960-5 Baty R600 - XLS Horizontal Optical Comparator with Acu-rite DC 102 Readout - 14" Screen

Fowler 53-900-960-5 Baty R600 - XLS Horizontal Optical Comparator with Acu-rite DC 102 Readout - 14" Screen
Click to zoom
  • Overview
  • Customers Also Bought
  • Your Recently Viewed Items
  • Reviews
  • Brand:Fowler
  • Part #:53-900-960-5
  • Model #:539009605
Condition: new
Warranty
    • $90,354.00 / Each
Contact Us

Overview


Fowler Baty R600 - XLS Horizontal Optical Comparator with Acu-rite DC 102 Readout - 14" Screen - 53-900-960-5

The Fowler Baty R600 with its 24"/600mm screen and high specification presents the capability to make simple comparative non-contact measurement through to complex programmed measuring sequences with SPC capability and automatic edge detection.

The horizontal light beam configuration is ideally suited to large machined or turned workpieces for mounting in vee blocks and centres.

Features:

  • 24"/600mm screen with 90º cross lines and chart clips
  • Heavy duty workstage with 18"/450mm x 8"/200mm measuring range and 2 machine slots for workpiece holders
  • Angular rotation of ± 15º on workstage for measuring threadforms or cutting tools
  • Vertical 8"/200mm Y axis power driven with joystick control
  • Lens magnification choice - 5x (single lens mount), 10x, 20x, 25x, 50x, 100x
  • 4 position rotating lens turret for ease of lens changing (excluding 5x)
  • Profile illumination with halogen lamp and green filter
  • Screen hood and curtains for use in bright ambient light conditions
  • Surface illumination (fibre optic)
  • Digital angle measurement
  • 0.5 micron resolution

Available Options:

  • Horizontal axis motorization via joystick control
  • Internally fitted automatic edge sensor to allow the use of overlay charts on an unobstructed screen
  • Various display units are available to suit individual requirements
  • SPC to add to your quality control without the purchase of a separate system (FT2-E only)
  • 5x lens system as a single lens mount only

Optical Comparator Type - R600 (*Lens Systems must be ordered separately):

  • Magnification 5x - Field of view 4.72"/120mm - Working distance 9.64"/245mm - Maximum 9.64"/245mm - Working diameter 18.98"/406mm
  • (Part Number 53-900-185-1) Magnification 10x - Field of view 2.36"/60mm - Working distance 5.31"/135mm - Maximum 13.50"/343mm - Working diameter 13.50"/343mm
  • (Part Number 53-900-185-2) Magnification 20x - Field of view 1.18"/30mm - Working distance 5.19"/132mm - Maximum 13.50"/343mm - Working diameter 13.50"/343mm
  • (Part Number 53-900-185-3) Magnification 25x - Field of view 0.94"/24mm - Working distance 4.17"/106mm - Maximum 13.50"/343mm - Working diameter 13.50"/343mm
  • (Part Number 53-900-185-4) Magnification 50x - Field of view 0.47"/12mm - Working distance 3.15"/93mm - Maximum 13.50"/343mm - Working diameter 13.50"/343mm
  • (Part Number 53-900-185-5) Magnification 100x - Field of view 1.72"/6mm - Working distance 1.96"/50mm - Maximum 7.75"/195mm - Working diameter 9.50"/235mm

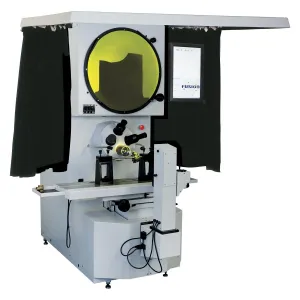

*Image shown for representational purposes only
