Fowler 53-900-915-1 Baty R400 - GXL - E Horizontal Optical Comparator with DRO as GXL with added Optical Edge Sensor - 16" Screen

Fowler Baty R400 - GXL - E Horizontal Optical Comparator with DRO as GXL with added Optical Edge Sensor - 16" Screen - 53-900-915-1

The Fowler Baty R400 bench mount optical comparator with its 400mm screen combines high accuracy non-contact measurement and inspection with a large 300mm x 150mm measuring range. Choice of digital readouts and optional automatic profile edge detection ensures that you can have the projector that fits your requirements. The horizontal light path configuration is ideally suited to turned machined parts that can be secured to the workstage using a range of optional accessories from the Fowler Baty fixture family. The robust design of the R400 makes it suitable for both the shop floor and the standards room.

Features:

• Windows based measuring with full reporting options, SPC, CAD import/export
• Optical edge sensor included
• 16"/400mm screen with 90º crosslines and chart clips
• Profile illumination with halogen lamp and green filter
• Lens magnification choice: 10x, 20x, 25x, 50x and 100x
• Surface illumination (fibre optic)
• Helix adjustment of light source for accurate thread form projection
• Workstage with two machined slots for holding accessories
• Workstage measuring range of 300mm (12") x 150mm (6")
• Digital angle measurement to 1 minute
• 0.5 micron resolution

Available Options:

• Internally fitted automatic edge sensor (FT2-E model only)
• Swing over lamphouse to allow clear access to the workstage
• Various display units to suit individual requirements
• Cabinet stand ensures a solid base and provides storage
• Other options include foot switch control

Optical Comparator Type - R400:

• (Part Number 53-900-987-1) Magnification 10x - Field Of View 40 - Working distance 80 - Maximum 184 - Working Diameter 179
• (Part Number 53-900-988-1) Magnification 20x - Field Of View 20 - Working distance 82 - Maximum 103 - Working Diameter 176
• Magnification 25x - Field Of View 16mm - Working distance 70 - Maximum 80 - Working Diameter 181
• (Part Number 53-900-990-1 ) Magnification 50x - Field Of View 8 - Working distance 53 - Maximum 45 - Working Diameter 147
• (Part Number 53-900-991-1) Magnification 100x - Field Of View 4 - Working distance 43 - Maximum 96 - Working Diameter 122

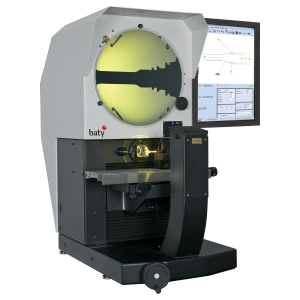

*Image shown for representational purposes only.
