Fowler 53-900-810-0 Baty R14 - FT2 - E Horizontal Optical Comparator with 27" Fusion Touch Screen DRO Opt. Edge

Fowler Baty R14 - FT2 - E Horizontal Optical Comparator with 27" FUSION Touch Screen DRO, Optical Edge Sensor and 14" Screen - 53-900-810-0

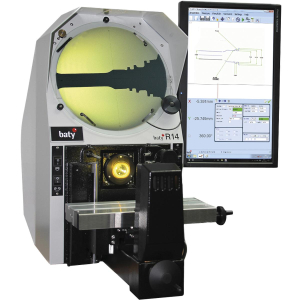

The Fowler Baty R14 bench mount optical comparator with its 340mm screen combines high accuracy non-contact measurement and inspection with a large 175mm x 100mm measuring range.

Choice of digital readouts and optional automatic profile edge detection ensures that you can have the comparator that fits your requirements. The horizontal light path configuration is ideally suited to turned machined parts that can be secured to the workstage using a range of optional accessories from the Fowler Baty fixture family. The compact and robust lightweight chassis makes the R14 ideal for workshop environments.

Features:

• Windows based measuring with full reporting options, SPC, CAD import/export
• Optical edge sensor included
• 14"/340mm screen with 90º crosslines and chart clips
• Profile illumination with halogen lamp and green filter
• Lens magnification choice: 10x, 20x, 25x, 50x and 100x
• Surface illumination (fibre optic)
• Helix adjustment of light source ± 7º for accurate thread form projection
• Workstage with machined slot for holding accessories
• Workstage measuring range of 7"/175mm x 4"/100mm
• Digital angle measurement to 1 minute
• 0.5 micron resolution

Available Options:

• Internally fitted automatic edge sensor
• Swing over lamphouse to allow clear access to the workstage
• Various display units are available to suit individual requirements
• Cabinet stand ensures a solid base and provides storage

Projector Type - R14 (*must be ordered separately):

• (Part Number 53-900-860-0) Magnification 10x - Field of view 35 - Working distance 82 - Maximum (half field) 103 - Working dia. (full field) 120
• (Part Number 53-900-861-0) Magnification 20x - Field of view 18 - Working distance 38 - Maximum (half field) 103 - Working dia. (full field) 109
• (Part Number 53-900-862-0) Magnification 25x - Field of view 14 - Working distance 24 - Maximum (half field) 80 - Working dia. (full field) 56
• (Part Number 53-900-863-0) Magnification 50x - Field of view 7 - Working distance 15 - Maximum (half field) 45 - Working dia. (full field) 31
• (Part Number 53-900-864-0) Magnification 100x - Field of view 4 - Working distance 31 - Maximum (half field) 96 - Working dia. (full field) 77

*Image shown for representational purposes only
