Fowler Baty SM350 - GXL Vertical Optical Comparator with Heidenhain Touch Screen Readout - 14" Screen - 53-900-351-0
This vertical 14"/350mm bench optical comparator features a large, heavy duty high precision workstage with 250mm x 125mm measuring range and 0.5 micron resolution. Another feature is the option of a three lens turret for instant lens changes without re-calibration.
Features:
- Fully usable 350mm screen
- Digital screen protractor
- Built in helix adjustment
- Sturdy all-steel design
- Heavy duty cross roller bearings
- Quick release 'X' and 'Y' travel
- Easy-view vertical screen
- Large stage travel 250mm (10") x 125mm (5")
- Rotating chart clips
- Fibre optic illumination for surface measurement
- 0.5 micron resolution
Available Options:
- Automatic screen-mounted edge sensing (FT2-E model only)
- Heavy duty cabinet stand
- 3-position rotating lens turret
Optical Comparator Type - SM350 (*Lens Systems must be ordered separately):
- (Part Number 53-900-860-0 ) Magnification 10x - Field Of View 35mm - Working distance 84mm - Maximum Half Field 220mm - Working Diameter Full Field 171mm - Maximum Height Object 114mm
- (Part Number 53-900-860-1 ) Magnification 20x - Field Of View 17mm - Working distance 37mm - Maximum Half Field 162mm - Working Diameter Full Field 130mm - Maximum Height Object 113mm
- (Part Number 53-900-862-0 ) Magnification 25x - Field Of View 14mm - Working distance 29mm - Maximum Half Field 52mm - Working Diameter Full Field 75mm - Maximum Height Object 106mm
- (Part Number 53-900-863-0 ) Magnification 50x - Field Of View 7mm - Working distance 17mm - Maximum Half Field 51mm - Working Diameter Full Field 37mm - Maximum Height Object 111mm
- (Part Number 53-900-864-0) Magnification 100x - Field Of View 3mm - Working distance 41mm - Maximum Half Field 140mm - Working Diameter Full Field 97mm - Maximum Height Object 103mm

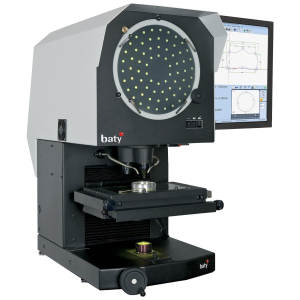

*Image shown for representational purposes only.
