Fowler 53-900-300-0 Baty SM300 - GMR Vertical Optical Comparator with Geometric Readout

Fowler Baty SM300 - GMR Vertical Optical Comparator with Geometric Readout - 53-900-300-0

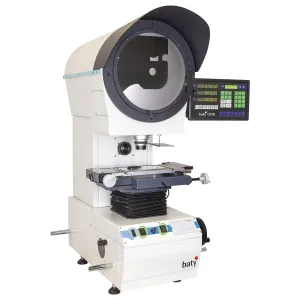

The Fowler Baty 12""/300mm screen vertical light path comparator with multi-function readout unit and printer. Robust design with full geometric measuring functionality ideal for the shop floor.

Features:

• Top quality profile projector highly versatile and easy to operate
• Large travel range 150mm x 50mm (6"x 2") as standard
• Linear scale stage with 0.0005mm resolution
• Fine ground glass screen for clear image with cross hairs
• Screen complete with cross hair lines and chart clips
• Built-in profile and surface illumination
• 10x, 20x, 50x, 100x projection lenses available
• Display-readout unit GMR included in standard delivery

Available Options:

• Projection lens 10x with half reflecting mirror
• Projection lens 20x with half reflecting mirror
• Projection lens 50x with half reflecting mirror
• Projection lens 100x with half reflecting mirror
• Rotary table 360º
• Swivel centre support
• Holder with clamp
• V-block with clamp

Optical Comparator Type - SM300 (*Lens Systems must be ordered separately):

• (Part Number 53-900-300-1) Magnification 10x - View Field Diameter 30mm - Working distance 77.7mm - Maximum Workpiece Height 80mm - Maximum Workpiece Diameter 160mm
• (Part Number 53-900-300-2) Magnification 20x - View Field Diameter 15mm - Working distance 44.3mm - Maximum Workpiece Height 80mm - Maximum Workpiece Diameter 130mm
• (Part Number 53-900-300-3) Magnification 50x - View Field Diameter 6mm - Working distance 24.5mm - Maximum Workpiece Height 80mm - Maximum Workpiece Diameter 55mm
• (Part Number 53-900-300-4) Magnification 100x - View Field Diameter 3mm - Working distance 25.3mm - Maximum Workpiece Height 80mm - Maximum Workpiece Diameter 60mm
