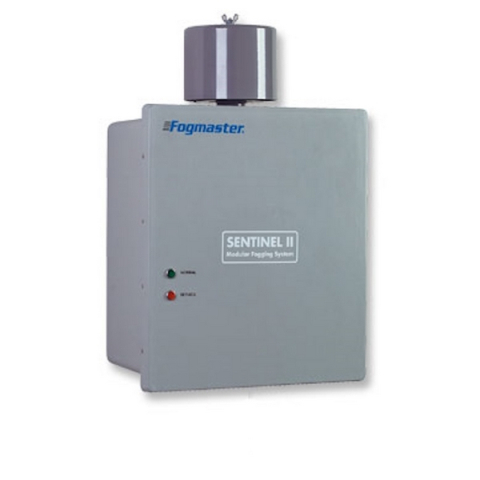

Fogmaster 560010 Sentinel II 5600 Remote Control, Hose Discharge Fogging System 120VAC w/o Hose

Fogging Power Head with Hose Discharge

This heavy duty fogger was designed for odor control in confined spaces. Simply bolt or hang the NEMA 4 enclosure to a wall or ceiling, indoors or out, plug into power, and attach the discharge hose/nozzle assembly and a low pressure liquid feed line. The fogger is ready to operate.

The power head activates when it senses liquid feed, so it needs no control wiring. That makes it easy to relocate heads, or add more, when your needs change. Just plug them in and connect a liquid line.

The 5600 offers an effective solution to stubborn odor problems in sewerage lift stations and other enclosed spaces (ambient pressure). Just insert the nozzle into a vent or a 2-1/4 inch diameter hole. Exposed parts are made of corrosion resistant materials and an inline check valve protects the power unit from backflow. A liquid solenoid valve prevents siphoning when the unit is off.

Ways to configure the liquid feed/control system include: a pump to feed pre-mixed liquid from a barrel; a proportional injector to dilute concentrate in-line; or for humidification, feed water directly from a connection to the house water system.

Any number of Sentinel II power heads can be supplied from a single liquid source. You can run all heads simultaneously, or switch them individually with low cost toggle valves.

This is 120VAC version.

For more information, please see Data Sheet and Manual
