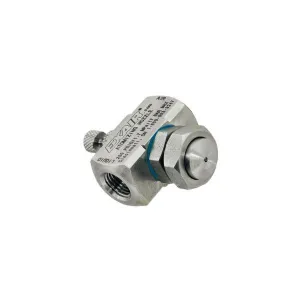

Exair SR1010SS 0.8 GPH 1/4 FNPT Siphon Fed Round Atomizing Nozzle

Exair SR1010SS 0.8 GPH 1/4 FNPT Siphon Fed Round Atomizing Nozzle
Click to zoom
  • Overview
  • Customers Also Bought
  • Your Recently Viewed Items
  • Reviews
  • Brand:Exair
  • Part #:SR1010SS
Condition: new
Warranty

Overview


EXAIR's 1/4 FNPT siphon fed round pattern nozzles are great where no liquid pressure is available and a thin coating is needed at a specific area. Flow rate is adjustable via the adjusting valve. Siphon nozzles work best with a suction height of 36" (914mm) or less. Since these nozzles are siphon fed, the compressed airflow draws the liquid in and mixes it internally. Liquid flow is dependent both on the gravity or suction height and the airflow. Siphon fed round pattern nozzles provide the most liquid flow of any siphon fed nozzle. Siphon or gravity fed for non-pressurized applications.

All of EXAIR's Atomizing Nozzles are constructed with Type 303 stainless steel, which can resist high temperatures and corrosive environments. They are designed for environments with a maximum operating temperature of 800°F (426°C).

Applications:

  • Washing
  • Rinsing
  • Coating
  • Cooling
  • Quenching
  • Wetting (moistening)
  • Humidification
  • Dust Control

Advantages:

  • Fully adjustable
  • Maximizes liquid dispersion
  • Minimizes liquid consumption
  • All stainless steel construction
  • Compact
  • Versatile
  • Interchangeable liquid and air caps
  • Minimizes air consumption
  • Fine atomization

EXAIR Atomizing Nozzles comply with the EU General Product Safety Directive (2001/95/EC) and meet the noise limitation requirements of the EU Machinery Directive (2006/42/EC). All sound level measurements are taken at 3 feet away.
