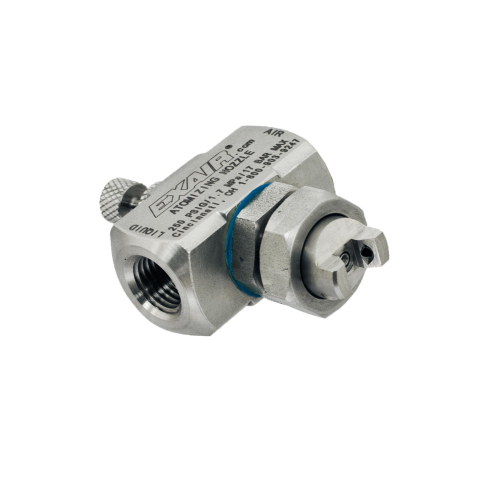

Exair EB1030SS Atomizing Spray Nozzle, External Mix, Wide Angle Flat Fan Pattern, 1/4 NPT, 14.0 GPH max flow
Click to zoom
- Overview
- Customers Also Bought
- Your Recently Viewed Items
- Reviews
Overview
EXAIR's 1/4 FNPT external mix wide angle flat fan pattern nozzles are great where a high volume of liquid is needed over a wide area such as a conveyor line. Because they are external mix, airflow and liquid flow can be controlled independently. Common applications are those which require a moderate application of liquid over a broad area, such as cooling or coating wide webs. For pressure fed applications with independent air and liquid control.
Applications:
- Washing
- Rinsing
- Coating
- Cooling
- Quenching
- Wetting (moistening)
- Humidification
- Dust Control
Advantages:
- Fully adjustable
- Maximizes liquid dispersion
- Minimizes liquid consumption
- All stainless steel construction
- Compact
- Versatile
- Interchangeable liquid and air caps
- Minimizes air consumption
- Fine atomization
Atomizing Nozzle Materials:
- Type 303 Stainless Steel - All of EXAIR's Atomizing Nozzles are constructed with Type 303 stainless steel, which can resist high temperatures and corrosive environments. They are designed for environments with a maximum operating temperature of 800°F (426°C).
