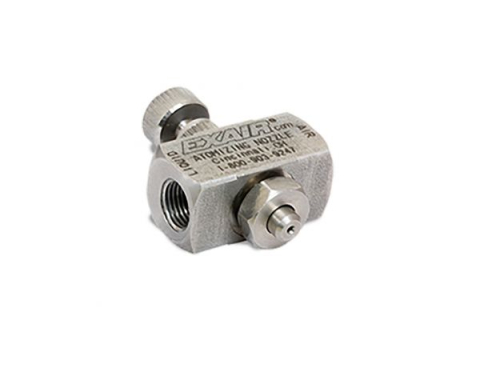

Exair AN8030SS Atomizing Spray Nozzle, Internal Mix, Narrow Angle Round Pattern, 1/8 NPT, 6.3 GPH max flow
Click to zoom
- Overview
- Customers Also Bought
- Your Recently Viewed Items
- Reviews
Overview
EXAIR's 1/8 FNPT internal mix narrow angle round pattern nozzles are excellent for spraying a concentrated mist of liquid. Because of the versatility of their adjustments, they can apply a heavy coat up close or send a very fine mist over 30 feet away! They are often used for precision application of lubricants during assembly, or marking items as they move through an assembly line. For pressure fed applications not requiring independent air and liquid control.
Applications:
- Washing
- Rinsing
- Coating
- Cooling
- Quenching
- Wetting (moistening)
- Humidification
- Dust Control
Advantages:
- Fully adjustable
- Maximizes liquid dispersion
- Minimizes liquid consumption
- All stainless steel construction
- Compact
- Versatile
- Interchangeable liquid and air caps
- Minimizes air consumption
- Fine atomization
Atomizing Nozzle Materials:
- Type 303 Stainless Steel - All of EXAIR's Atomizing Nozzles are constructed with Type 303 stainless steel, which can resist high temperatures and corrosive environments. They are designed for environments with a maximum operating temperature of 800°F (426°C).
