Exair 6295 55 Gallon Deluxe High Lift Reversible Drum Vac System

EXAIR's Deluxe High Lift Reversible Drum Vac System includes features that make the High Lift Reversible Drum easier to use for everyday tasks. The High Lift Reversible Drum Vac attaches quickly to any closed head 55 gallon drum. Its high powered vacuum is able to lift liquids up to 15 feet and fill a 55 gallon drum in less than 85 seconds then, with the simple turn of a knob, the same stainless steel pump quickly empties the drum. The High Lift Reversible Drum Vac has the extra power you need to move liquids from below grade work areas, sumps or tanks up to 15 feet! (drum not included)

Applications

• Below grade coolant sumps
• Deep wells
• Underground storage tanks
• Pits
• Drains
• Deep hole broaching
• Bulk storage tanks
• Cisterns

Advantages

• No moving parts
• Maintenance free
• Stainless steel construction
• Safe - no electricity
• Built-in pressure/vacuum relief
• Compact and portable
• Installs quickly
• Spill free - auto safety shutoff
• Fits standard closed head drums

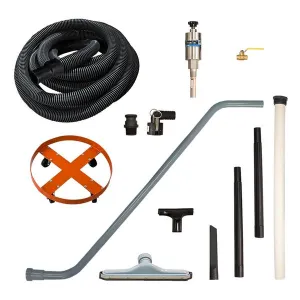

What's Included

• Two-way pump assembly (1/4 NPT)
• Automatic safety shutoff valve
• 20' (6.1m) flexible vacuum hose at 1-1/2" (38mm) I.D.
• 90 quick release elbow for 1-1/2" (38mm) vacuum hose
• ABS spill recovery kit
• One aluminum wand
• Two extension wands
• Crevice tool
• Skimmer tool
• Tool holder

• Drum dolly

  (Drum Not Included)

How the EXAIR High Lift Reversible Drum Vac Works

The flex hose is attached to the barbed connection on the Reversible Drum Vac system. The knob on the High Lift Reversible Drum Vac pump is set to the "fill" position. The air supply valve is opened to permit compressed air at 80-100 PSIG (5.5 - 6.9 BAR) to flow through the High Lift Reversible Drum Vac pump which pulls liquid through the flex hose and into the drum. When all liquid is in the drum, the air supply is turned off. If liquid exceeds the drum capacity, the safety shut-off valve will prevent overfilling. The liquid can then be pumped back out of the flex hose by setting the knob on the High Lift Reversible Drum Vac pump to the "empty" position and opening the air supply valve.

Warning: Do not use with any material that has a low flash point or with flammable liquids such as fuel oil, alcohol, mineral spirits, gasoline or kerosene.
