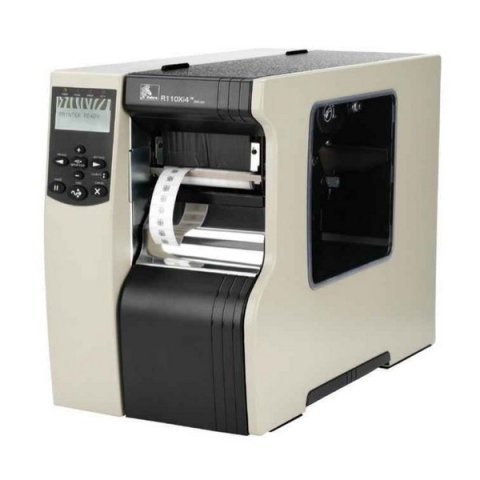

Zebra R13-801-00200-R0 R110Xi4 RFID Printer/Encoder

Innovation and flexibility in RFID printer/encoders

With Zebra's R110Xi4 RFID printer/encoder - optimised for high-volume operations - you can print and encode a variety of UHF radio frequency identification smart labels for a multitude of applications, from small, high-resolution (600dpi) healthcare specimen smart labelling and item-level tagging to RFID pallet/carton labelling with print widths up to 102mm/4".

As Zebra's third-generation RXi™ series printer/encoder, the R110Xi4 is designed with innovative, industry-leading features to meet the demands of current and future applications, and leverages the built-to-last Xi4™ printer platform for robust performance.

R110Xi4 printer/encoder offers high resolution (23.5 dots per mm/600dpi) for enhanced print quality on smaller labels, such as component smart labels. Versions with 8 dots per mm/203dpi or 12 dots per mm/300dpi are perfect for high-volume smart labelling, including parts and item-level tagging. Auto-configuration, which enables encoding of a variety of different RFID tags, simplifies setup. And by encoding RFID inlays that are spaced closer together (16mm/0.6") than other-brand printer/encoders, the R110Xi4 enables lower cost per label, fewer media-roll changes and faster throughput.

Adaptive RFID encoding technology with variable inlay detection capability ensures the highest encoding accuracy in the industry. You can even use media converted for other printer/encoders thanks to Zebra's ability to detect variable inlay placement. If you don't need printed labels, the direct-to-inlay encoding capability means even more media savings.

Organisations with multinational supply chains can easily deploy the same R110Xi4 printer/encoder model in multiple countries thanks to Zebra's global certification process.

Applications:

• Item-level tracking for apparel and other retail item tagging
• Package verification
• Work in process
• Product authentication
• Document/asset-tracking
• Inventory management
• Shipping/receiving verification
• Distribution
• Healthcare specimen tracking

Features:

• Dependable print quality - on-board diagnostics ensure optimum print quality
• Large easy-to-read front panel with multilingual back-lit LCD display. Menu supports a wide variety of languages - great for multinational operations
• Bi-fold media door with clear panel
• Improved ribbon- and media-low
• LCD/network alerts
• Thin film printhead with E 3 ™ Element Energy
• Equalizer™
• Dual media sensors - transmissive and reflective, selectable through software or front panel
• Real-time clock
• RFID
• Fully integrated UHF EPC Gen 2 V1.2/
• ISO 18000-6C RFID reader/encoder
• Prints and encodes EPC Gen 2 tags with a pitch of 16mm/0.6"
• Adaptive encoding technology automatically selects optimum encode settings
• Auto-tag calibration for label lengths of 51mm/2" or greater
• Variable inlay placement supports a range of inlay positions for maximum media flexibility
• RFID counters keep track of the good and bad labels
• RFID processes optimised for fastest label throughput
• RFID ZPL ® commands allow ease of RFID setup with maximum flexibility
• Variable RFID power settings for both read and write allow maximum flexibility for printing small labels

For more information, please see Data Sheet
