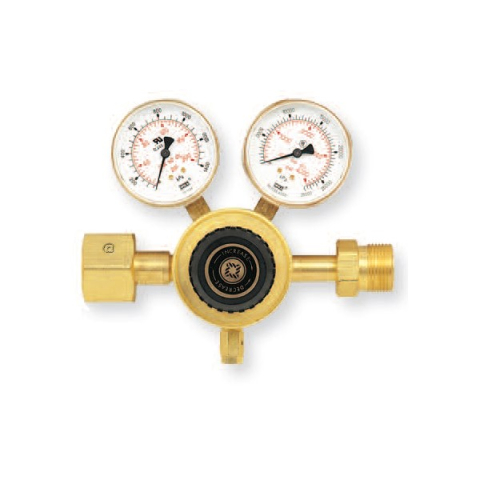

Western Enterprises RDM-9-4 RM Series Manifold In-line Regulator, Oxygen

The RM Series In-Line Manifold Regulator is a pressure compensated single stage design (oxygen is two-stage) and is able to maintain stable delivery pressure performance equal to a two-stage design. The unique cartridge in this regulator permits easy, single-unit replacement of vital parts in minutes. Seat, nozzle, filter, spring, seals and can be replaced without special tools and without breaking the bonnet-to-body seal. The cartridge can be re-moved and a new one installed without costly down time or removal of the regulator from the pipeline.

Features:

• Forged brass body and bonnet
• Field-replaceable seat cartridge - RM Models
• Bonded neoprene seat with broad face nozzle (RDM - first stage PCTFE, second stage fluorocarbon)
• Large 2-3/4" reinforced neoprene diaphragm
• 2-1/2" diameter gauges
• Maximum inlet pressure: 3000 PSIG

WARNING:This product can expose you to lead, which is known to the State of California to cause cancer andbirth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
