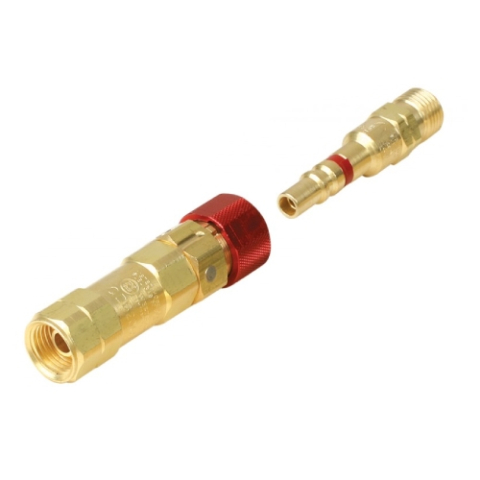

Western Enterprises QDB60 Regulator-to-Hose Quick-Connect Set with Check Valves

Regulator-to-Hose with Check Valves

KwikLok - OSHA Compliant Quick Connects with Sleeve Lock Feature

Quick Connects Sets - B Size (9/16"- 18)

Features:

• Brass construction provides long service life-cycle tested over 10,000 operations indicating a service life of 10 to 12 years of comparable use
• Non-interchangeable Oxygen and Fuel Gas connectors prevent accidental gas mixing
• Instant closure on reverse flow Check Valves with total shutoff at only 10 oz. of back pressure
• Exceed CGA flow specifications-1100 SCFH flow at 125 PSIG inlet pressure and 800 SCFH flow at 125 PSIG inlet pressure when 2 additional check valves are used in conjunction with the Quick Connects
• Spring loaded locking mechanism responds to fingertip action and achieves a gas-tight connection
• For inert gas models, demand valve on supply side creates a positive seal when fitting is not connected
• Double seal socket connection on second seal provides added safety protection
• Installation and operating instructions included
