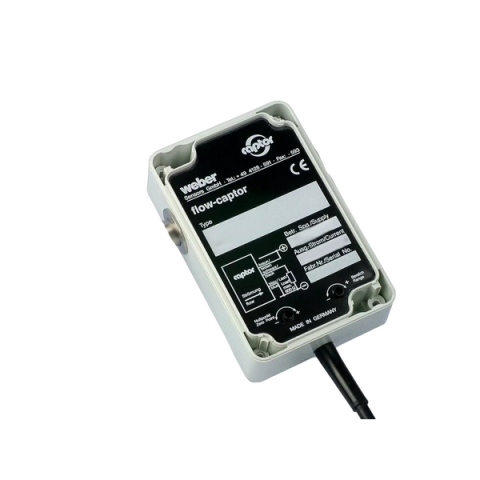

Weber Sensors 4311.30/28 Flow-Captor Inline Flow Meter with Analog Output 4-20 mA for Water-Based Media Macrolon Housing (28mm Pipe Diameter)

Flow meter for liquid media Flow-captor 4311.30/28

The flow-captor Type 4311.30/28 is a non-reactive flow meter, ideal for all measurement and control tasks in automation processes or other industrial applications. The 4311.30 is an inline model specially designed for installation in smaller pipe diameters. The sensor works according to the calorimetric measuring principle. The detection takes place in the inline tube, whereby the sensor measures the "heat flow" depending on the flow velocity of the medium and converts it into a linearized, flow-proportional, electrical signal.

Features:

• For small pipe sizes from
• Analogue current output 4 - 20 mA
• Ideal also for lower flow velocities
• Robust industrial design (fully encapsulated)
• Electronic
• No mechanically moved parts
• ISO 9001:2015

For more information, please see Instruction Manual
