Weber Sensors 4120.41MS141 Flow-Captor Flow Switch for Water-Based Media with Relay Output IP67 6-Pin BINDER Coupling (Binder-Plug)

Flow switch for liquid media Flow-captor 4120.41M S141

The flow-captor 4120.41M S141 is ideally suited for use in automation processes or other industrial applications where liquid media must be monitored. The sensor operates according to the calorimetric measuring principle, fully electronically and without mechanically moving parts. The flow-captor records the flow velocity of the medium and converts it into an electrical signal.

Features:

• Precise switching flow monitor with relay output
• Version with BINDER coupling (S141)
• High switching accuracy even with slower flows
• Separate setting of set-point and range
• Display of the flow and the adjusted set-point via LED chain
• LED for switching status
• Robust stainless steel design (special potting)
• ISO 9001:2015

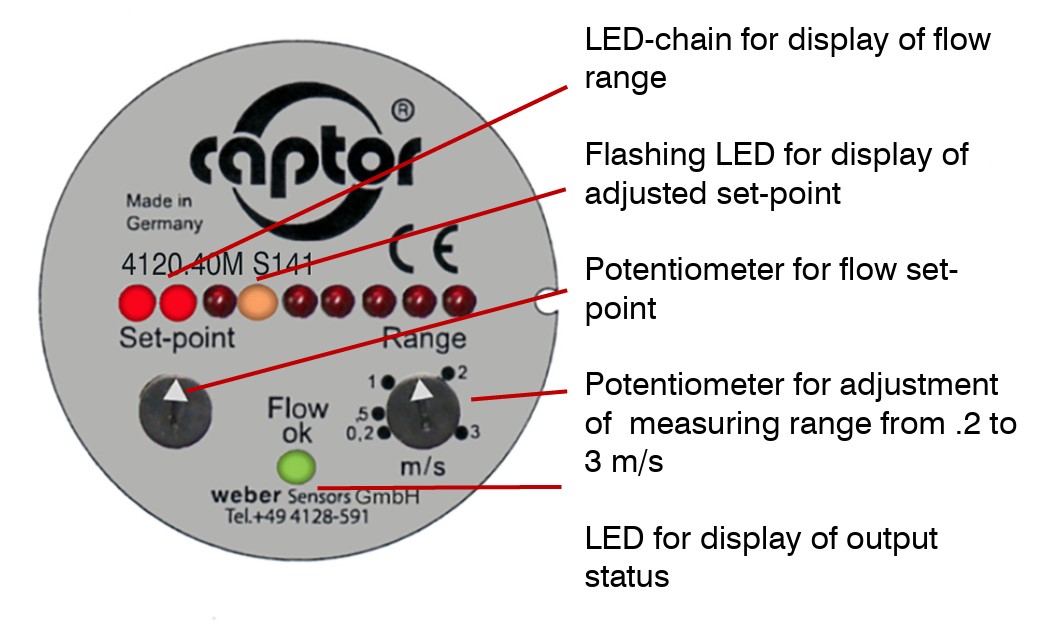

Control and display panel

Sensor head

The sensor head is constructed of only one piece of eletropolished stainless steel and without any sensor element intruding into the medium. Easy installation by means of T-piece or welded fitting. The electronics inside is completely epoxy resin encapsulated.

For more information, please see Instruction Manual
