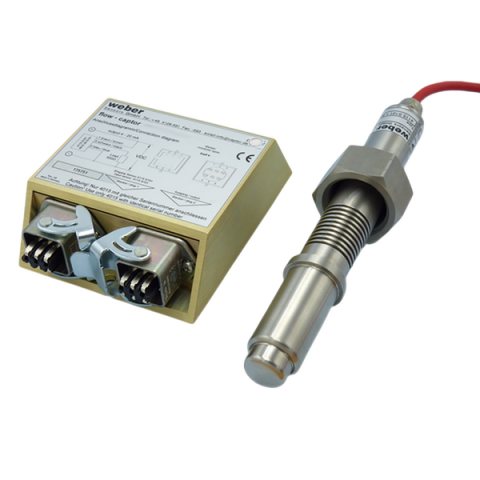

Weber Sensors 4115 S101 + 4015.31 S101 Flow Captor Flow Meter for Oil-Based Media (Remote Electronic and Sensor) 0.2-2m/s Measuring Range IP65 24VDC

Flow meter for liquid media Flow-captor 4115 S101 + 4015.31 S101

The flow-captor type 4115 S101 + 4015.31 S101; ideal for all measurement and control tasks within automation processes or other industrial applications where liquid media must be controlled. Remote systems are used, for example, where due to a higher medium temperature the electronics must be placed separately from the sensor. The system works according to the calorimetric measuring principle, which enables the adjustment of the measuring range to a large quantity spectrum. The flow-captor works fully electronically and without mechanically moving parts. The sensor detects the flow velocity of the medium and converts it into an electrical signal.

Features:

• Precise flow measurement
• Adjustable measuring range
• Medium temperature up to 275 °F
• Analogue current output 4 - 20 mA or voltage output 0.1 - 10 V
• Robust industrial construction (special potting of sensor head and electronics)
• ISO 9001:2015
