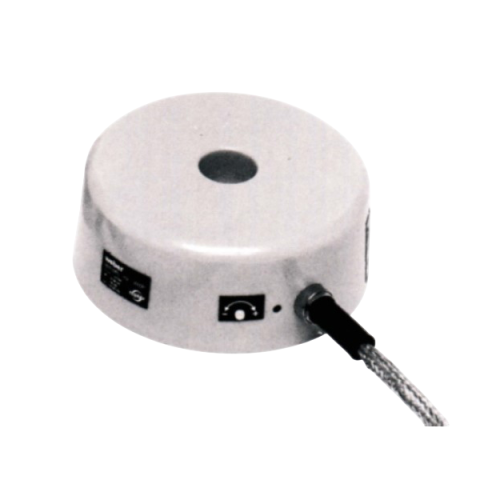

Weber Sensors 2100.15 U Proxi-Captor Proximity Switch with ABS Plastic Housing Transistor Output (100mm Switching Distance) Universal Mounting Plate

Proxi-captor products are rugged, inductive proximity switches which have been especially conceived for installation in harsh industrial environments. The simple nylon Allen bolt mounting of both proxi-captor series protects the units from serious mechanical damage in the event of a collision by breaking cleanly. Designed for heavy industrial applications the proxi-captors are fully resin encapsulated and constructed of durable material, housed in resilient ABS plastic. The high frequency oscillator in the proxi-captor is detuned when metal components approach and subsequently drives a switching stage via a trigger amplifier to give a reliable switching signal. The proxi-captor can be applied wherever switching distances vary, high switching frequencies occur or large sensing distances are concerned and where high repeatability is required.

Features:

• Compact and remote
• Self-adjusting and adjustable proximity switches
• Fully encapsulated
• No moving parts
• ABS plastic housings
• Universal Mounting Plate
• ISO 9001:2015

Proxi-captor inductive proximity switches for contactless switching tasks in heavy industry, simple to install with center fixing bolt, adjustable switching range, short circuit protected, fully encapsulated electronics.

For more information, please see Data Sheet
